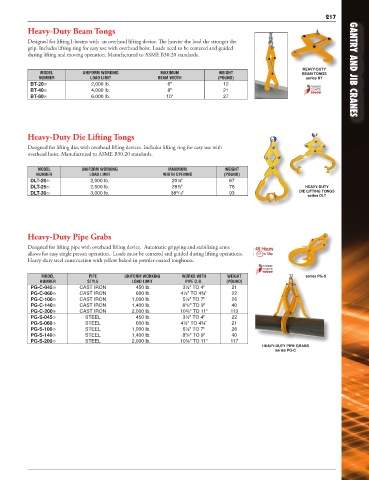

Page 16 - Gantry & Jib Cranes

217
Heavy-Duty Beam Tongs

Designed for lifting I-beams with an overhead lifting device. The heavier the load the stronger the
grip. Includes lifting ring for easy use with overhead hoist. Loads need to be centered and guided
during lifting and moving operation. Manufactured to ASME B30.20 standards.

HEAVY-DUTY GANTRY AND JIB CRANES
MODEL UNIFORM WORKING MAXIMUM WEIGHT BEAM TONGS
NUMBER LOAD LIMIT BEAM WIDTH (POUND) series BT
BT-20� 2,000 lb. 6" 12
BT-40� 4,000 lb. 8" 21
BT-60� 6,000 lb. 10" 27

Heavy-Duty Die Lifting Tongs
Designed for lifting dies with overhead lifting devices. Includes lifting ring for easy use with
overhead hoist. Manufactured to ASME B30.20 standards.

MODEL UNIFORM WORKING MAXIMUM WEIGHT
NUMBER LOAD LIMIT WIDTH OPENING (POUND)
DLT-20� 2,000 lb. 20¼" 67
DLT-25� 2,500 lb. 28½" 76 HEAVY-DUTY
9
DLT-30� 3,000 lb. 38 /16" 93 DIE LIFTING TONGS
series DLT

Heavy-Duty Pipe Grabs

Designed for lifting pipe with overhead lifting device. Automatic gripping and stabilizing arms
allows for easy single person operation. Loads must be centered and guided during lifting operations.
Heavy-duty steel construction with yellow baked-in powder-coated toughness.

MODEL PIPE UNIFORM WORKING WORKS WITH WEIGHT series PG-S
NUMBER STYLE LOAD LIMIT PIPE O.D. (POUND)
PG-C-045� CAST IRON 450 lb. 3½" TO 4" 21
PG-C-060� CAST IRON 600 lb. 4½" TO 4¾" 22
PG-C-100� CAST IRON 1,000 lb. 5½" TO 7" 26
5
PG-C-140� CAST IRON 1,400 lb. 8 /8" TO 9" 40
PG-C-200� CAST IRON 2,000 lb. 10¾" TO 11" 113
PG-S-045� STEEL 450 lb. 3½" TO 4" 22
PG-S-060� STEEL 600 lb. 4½" TO 4¾" 21
PG-S-100� STEEL 1,000 lb. 5½" TO 7" 26
5
PG-S-140� STEEL 1,400 lb. 8 /8" TO 9" 40
PG-S-200� STEEL 2,000 lb. 10¾" TO 11" 117
HEAVY-DUTY PIPE GRABS
series PG-C
