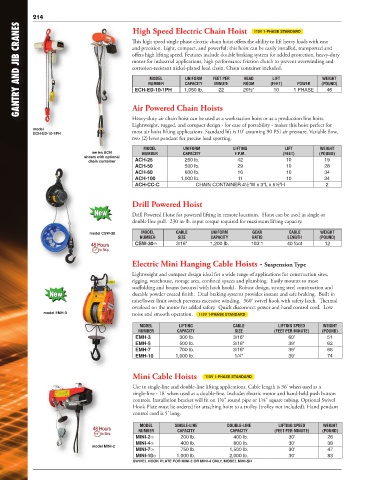

214 This high speed single phase electric chain hoist offers the ability to lift heavy loads with ease
GANTRY AND JIB CRANES and precision. Light, compact, and powerful; this hoist can be easily installed, transported and
High Speed Electric Chain Hoist
115V 1-PHASE STANDARD

offers high lifting speed. Features include double braking system for added protection, heavy-duty
motor for industrial applications, high performance friction clutch to prevent overwinding and
corrosion-resistant nickel-plated load chain. Chain container included.
UNIFORM
WEIGHT
LIFT
FEET PER
HEAD
MODEL
ROOM
CAPACITY
(FEET)
MINUTE
POWER
(POUND)
NUMBER
ECH-ED-10-1PH
20½"
22
46
1 PHASE
10
1,050 lb.
Air Powered Chain Hoists
Heavy-duty air chain hoist can be used as a workstation hoist or as a production line hoist.
Lightweight, rugged, and compact design - for ease of portability - makes this hoist perfect for
model most air hoist lifting applications. Standard lift is 10' assuming 90 PSI air pressure. Variable flow,
ECH-ED-10-1PH
two (2) lever pendant for precise load spotting.
MODEL UNIFORM LIFTING LIFT WEIGHT
series ACH NUMBER CAPACITY F.P.M. (FEET) (POUND)
shown with optional
chain container ACH-25 250 lb. 42 10 19
ACH-50 500 lb. 29 10 28
ACH-60 600 lb. 16 10 34
ACH-100 1,000 lb. 11 10 34
ACH-CC-C CHAIN CONTAINER 4½"W x 3"L x 5½"H 2
Drill Powered Hoist
New Drill Powered Hoist for powered lifting in remote locations. Hoist can be used in single or
double line pull. 230 in-lb. input torque required for maximum lifting capacity.
model CSW-30 MODEL CABLE UNIFORM GEAR CABLE WEIGHT
NUMBER SIZE CAPACITY RATIO LENGTH (POUND)
CSW-30� 3/16" 1,200 lb. 103:1 40 foot 12
Electric Mini Hanging Cable Hoists - Suspension Type
Lightweight and compact design ideal for a wide range of applications for construction sites,
rigging, warehouse, storage area, confined spaces and plumbing. Easily mounts to most
scaffolding and beams (secured with latch hook). Robust design, strong steel construction and
New durable powder coated finish. Dual braking systems provides instant and safe braking. Built in
raise/lower limit switch prevents excessive winding. 360° swivel hook with safety latch. Thermal
overload on the motor for added safety. Quick disconnect power and hand control cord. Low
model EMH-3 noise and smooth operation. 115V 1-PHASE STANDARD

MODEL LIFTING CABLE LIFTING SPEED WEIGHT
NUMBER CAPACITY SIZE (FEET PER MINUTE) (POUND)
EMH-3 300 lb. 3/16" 60' 51
EMH-5 500 lb. 3/16" 39' 62
EMH-7 700 lb. 3/16" 39' 66
EMH-10 1,000 lb. 1/4" 39' 74

Mini Cable Hoists 115V 1-PHASE STANDARD
Use in single-line and double-line lifting applications. Cable length is 36' when used as a
single-line - 18' when used as a double-line. Includes electric motor and hand-held push button
controls. Installation bracket will fit on 1⅝" round pipe or 1⅝" square tubing. Optional Swivel
Hook Plate must be ordered for attaching hoist to a trolley (trolley not included). Hand pendant
control cord is 5' long.
MODEL SINGLE-LINE DOUBLE-LINE LIFTING SPEED WEIGHT
NUMBER CAPACITY CAPACITY (FEET PER MINUTE) (POUND)
MINI-2� 200 lb. 400 lb. 30' 26
MINI-4� 400 lb. 800 lb. 30' 38
model MINI-2
MINI-7� 750 lb. 1,500 lb. 30' 47
MINI-10� 1,000 lb. 2,000 lb. 30' 83
SWIVEL HOOK PLATE FOR MINI-2 OR MINI-4 ONLY, MODEL MINI-SH
