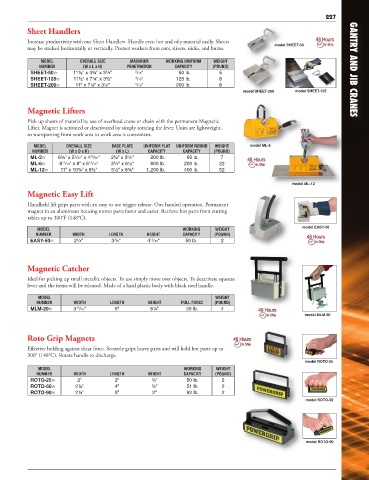

Page 26 - Gantry & Jib Cranes

227
Sheet Handlers

Increase productivity with our Sheet Handlers. Handle even hot and oily material easily. Sheets
may be stacked horizontally or vertically. Protect workers from cuts, slivers, nicks, and burns. model SHEET-50

MODEL OVERALL SIZE MAXIMUM WORKING UNIFORM WEIGHT
NUMBER (W x L x H) PENETRATION CAPACITY (POUND)
5
SHEET-50� 11½" x 4¾" x 3 /8" 5 /16" 50 lb. 5 GANTRY AND JIB CRANES
SHEET-125� 11½" x 7¼" x 3½" 3 /15" 125 lb. 8
SHEET-200� 11" x 7¼" x 3½" 5 /16" 200 lb. 8
model SHEET-200 model SHEET-125

Magnetic Lifters
Pick up sheets of material by use of overhead crane or chain with the permanent Magnetic
Lifter. Magnet is activated or deactivated by simply rotating the lever. Units are lightweight,
so transporting from work area to work area is convenient.
MODEL OVERALL SIZE BASE PLATE UNIFORM FLAT UNIFORM ROUND WEIGHT model ML-6
NUMBER (W x D x H) (W x L) CAPACITY CAPACITY (POUND)
3
29
5
ML-2� 6¾" x 5 /32" x 4 /32" 2½" x 3 /8" 200 lb. 60 lb. 7
5
11
13
ML-6� 8 /16" x 8" x 6 /16" 3 /8" x 6½" 600 lb. 200 lb. 22
ML-12� 11" x 10¾" x 8½" 5½" x 8¾" 1,200 lb. 400 lb. 52
model ML-12
Magnetic Easy Lift
Handheld lift grips parts with an easy to use trigger release. One handed operation. Permanent
magnet in an aluminum housing moves parts faster and easier. Retrieve hot parts from cutting
tables up to 300°F (148°C).
MODEL WORKING WEIGHT model EASY-50
NUMBER WIDTH LENGTH HEIGHT CAPACITY (POUND)
3
13
3
EASY-50� 2 /8" 3 /8" 4 /16" 50 lb. 2
Magnetic Catcher
Ideal for picking up small metallic objects. To use simply move over objects. To deactivate squeeze
lever and the items will be released. Made of a hard plastic body with black steel handle.
MODEL WEIGHT
NUMBER WIDTH LENGTH HEIGHT PULL FORCE (POUND)
13
MLM-20� 3 /16" 6" 8¼" 20 lb. 4
model MLM-20

Roto Grip Magnets
Effective holding against shear force. Securely grips heavy parts and will hold hot parts up to
300° (148°C). Rotate handle to discharge.
model ROTO-25
MODEL WORKING WEIGHT
NUMBER WIDTH LENGTH HEIGHT CAPACITY (POUND)
ROTO-25� 2" 2" ¾" 50 lb. 2
ROTO-50� 2¼" 4" ¾" 51 lb. 2
ROTO-90� 2¼" 5" 2" 92 lb. 2
model ROTO-50

model ROTO-90
