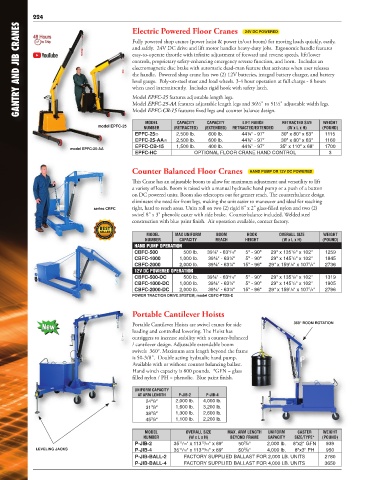

Page 23 - Gantry & Jib Cranes

224 Electric Powered Floor Cranes 24V DC POWERED
GANTRY AND JIB CRANES and safely. 24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features

Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily,
easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower
controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an
electromagnetic disc brake with automatic dead-man feature that activates when user releases
the handle. Powered shop crane has two (2) 12V batteries, integral battery charger, and battery
level gauge. Poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours
when used intermittently. Includes rigid hook with safety latch.
Model EPFC-25 features adjustable length legs.
Model EPFC-25-AA features adjustable length legs and 36½" to 51½" adjustable width legs.
Model EPFC-CB-15 features fixed legs and counter balance design.
MODEL CAPACITY CAPACITY LIFT RANGE RETRACTED SIZE WEIGHT
model EPFC-25 NUMBER (RETRACTED) (EXTENDED) RETRACTED/EXTENDED (W x L x H) (POUND)
EPFC-25� 2,500 lb. 600 lb. 44¼" - 97" 30" x 80" x 63" 1115
EPFC-25-AA� 2,500 lb. 600 lb. 44¼" - 97" 30" x 80" x 63" 1160
EPFC-CB-15 1,500 lb. 400 lb. 44¼" - 97" 35" x 110" x 68" 1700
model EPFC-25-AA
EPFC-HC OPTIONAL FLOOR CRANE HAND CONTROL 3

Counter Balanced Floor Cranes HAND PUMP OR 12V DC POWERED
This Crane has an adjustable boom to allow for maximum adjustment and versatility to lift
a variety of loads. Boom is raised with a manual hydraulic hand pump or a push of a button
on DC powered units. Boom also telescopes out for greater reach. The counterbalance design
eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching
series CBFC tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2)
swivel 8" x 3" phenolic caster with side brake. Counterbalance included. Welded steel
construction with blue paint finish. Air operation available, contact factory.

MODEL MAX UNIFORM BOOM HOOK OVERALL SIZE WEIGHT
NUMBER CAPACITY REACH HEIGHT (W x L x H) (POUND)
HAND PUMP OPERATION
CBFC-500 500 lb. 39¼" - 63 /16" 5" - 90" 29" x 135 /8" x 102" 1259
1
5
CBFC-1000 1,000 lb. 39¼" - 63¼" 5" - 90" 29" x 145 /4" x 102" 1845
1
CBFC-2000 2,000 lb. 39¼" - 63¼" 15" - 96" 29" x 159 /8" x 107 /2" 2736
1
1
12V DC POWERED OPERATION
CBFC-500-DC 500 lb. 39¼" - 63 /16" 5" - 90" 29" x 135 /8" x 102" 1319
1
5
CBFC-1000-DC 1,000 lb. 39¼" - 63¼" 5" - 90" 29" x 145 /4" x 102" 1905
1
CBFC-2000-DC 2,000 lb. 39¼" - 63¼" 15" - 96" 29" x 159 /8" x 107 /2" 2796
1
1
POWER TRACTION DRIVE SYSTEM, model CBFC-PTDS-E
Portable Cantilever Hoists
New Portable Cantilever Hoists are swivel cranes for side 360° BOOM ROTATION
loading and controlled lowering. The Hoist has
outriggers to increase stability with a counter-balanced
/ cantilever design. Adjustable extendable boom
swivels 360°. Maximum arm length beyond the frame
is 50-3/8". Double acting hydraulic hand pump.
Available with or without counter balancing ballast.
Hand winch capacity is 800 pounds. *GFN = glass
filled nylon / PH = phenolic. Blue paint finish.
UNIFORM CAPACITY
AT ARM LENGTH P-JIB-2 P-JIB-4
3
24 /8" 2,000 lb. 4,000 lb.
3
31 /8" 1,600 lb. 3,200 lb.
3
38 /8" 1,300 lb. 2,600 lb.
3
45 /8" 1,100 lb. 2,200 lb.
MODEL OVERALL SIZE MAX. ARM LENGTH UNIFORM CASTER WEIGHT
NUMBER (W x L x H) BEYOND FRAME CAPACITY SIZE/TYPE* (POUND)
P-JIB-2 35 /16" x 113 /16" x 89" 50 /8" 2,000 lb. 8"x2" GFN 939
11
13
3
LEVELING JACKS P-JIB-4 35 /16" x 113 /16" x 89" 50 /8" 4,000 lb. 8"x3" PH 950
3
13
11
P-JIB-BALL-2 FACTORY SUPPLIED BALLAST FOR 2,000 LB. UNITS 2780
P-JIB-BALL-4 FACTORY SUPPLIED BALLAST FOR 4,000 LB. UNITS 3650
