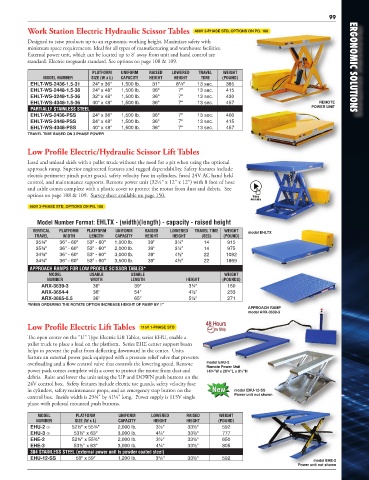

P. 6

99
          Work Station Electric Hydraulic Scissor Tables         460V 3-PHASE STD, OPTIONS ON PG. 108

          Designed to raise products up to an ergonomic working height. Maximizes safety with
          minimum space requirements. Ideal for all types of manufacturing and warehouse facilities.
          External power unit, which can be located up to 8' away from unit and hand control are
          standard. Electric toeguards standard. See options on page 108 & 109.
                               PLATFORM  UNIFORM  RAISED  LOWERED  TRAVEL  WEIGHT                                  ERGONOMIC SOLUTIONS
               MODEL NUMBER    SIZE (W x L)  CAPACITY  HEIGHT  HEIGHT  TIME  (POUND)
           EHLT-WS-2436-1.5-31  24" x 36"  1,500 lb.  31"  8 /8"  13 sec.  385
                                                           5
           EHLT-WS-2448-1.5-36  24" x 48"  1,500 lb.  36"  7"     13 sec.  415
           EHLT-WS-3248-1.5-36  32" x 48"  1,500 lb.  36"  7"     13 sec.  430
           EHLT-WS-4048-1.5-36  40" x 48"  1,500 lb.  36"  7"     13 sec.  457                           REMOTE
           PARTIALLY STAINLESS STEEL                                                                   POWER UNIT
           EHLT-WS-2436-PSS    24" x 36"  1,500 lb.  36"   7"     13 sec.  400
           EHLT-WS-2448-PSS    24" x 48"  1,500 lb.  36"   7"     13 sec.  415
           EHLT-WS-4048-PSS    40" x 48"  1,500 lb.  36"   7"     13 sec.  457
          TRAVEL TIME BASED ON 3 PHASE POWER

          Low Profile Electric/Hydraulic Scissor Lift Tables
          Load and unload skids with a pallet truck without the need for a pit when using the optional
          approach ramp. Superior engineered features and rugged dependability. Safety features include
          electric perimeter pinch point guard, safety velocity fuse in cylinders, fused 24V AC hand held
          control, and maintenance supports. Remote power unit (32½" x 12" x 12") with 8 foot of hose
          and cable comes complete with a plastic cover to protect the motor from dust and debris.  See
          options on page 108 & 109.  Survey sheet available on page 150.

           460V 3-PHASE STD, OPTIONS ON PG. 108
             Model Number Format: EHLTX - (width)(length) - capacity - raised height
            VERTICAL  PLATFORM  PLATFORM  UNIFORM  RAISED  LOWERED  TRAVEL TIME   WEIGHT  model EHLTX
            TRAVEL    WIDTH   LENGTH   CAPACITY  HEIGHT  HEIGHT    (SEC)  (POUND)
             35¾"   36" - 60"  53" - 60"  1,000 lb.  39"  3¼"       14     915
             35¾"   36" - 60"  53" - 60"  2,000 lb.  39"  3¼"       14     975
             34¾"   36" - 60"  53" - 60"  3,000 lb.  39"  4½"       22     1092
             34¾"   36" - 60"  53" - 60"  3,500 lb.  39"  4½"       22     1869
           APPROACH RAMPS FOR LOW PROFILE SCISSOR TABLES*
                 MODEL        USABLE        USABLE                        WEIGHT
                NUMBER         WIDTH        LENGTH            HEIGHT      (POUNDS)
               ARX-3639-3      36"           39"               3¼"         150
               ARX-3654-4      36"           54"               4½"         233
               ARX-3665-5.5    36"           65"               5½"         271
          *WHEN ORDERING THE ROTATE OPTION INCREASE HEIGHT OF RAMP BY 1"
                                                                                  APPROACH RAMP
                                                                                  model ARX-3639-3
          Low Profile Electric Lift Tables     115V 1-PHASE STD
          The open center on the "U" Type Electric Lift Tables, series EHU, enable a
          pallet truck to place a load on the platform.  Series EHE center support beam
          helps to prevent the pallet from deflecting downward in the center.  Units
          feature an external power pack equipped with a pressure relief valve that prevents
          overloading and a flow control valve that controls the lowering speed. Remote   model EHU-2
                                                                     Remote Power Unit
          power pack comes complete with a cover to protect the motor from dust and   14¾"W x 26¾"L x 9½"H
          debris.  Raise and lower the unit using the UP and DOWN push buttons on the
          24V control box.  Safety features include electric toe guards, safety velocity fuse
          in cylinders, safety maintenance props, and an emergency stop button on the   New  model EHU-12-SS
          control box.  Inside width is 29¾" by 41¼" long.  Power supply is 115V single   Power unit not shown
          phase with pedestal mounted push buttons.
             MODEL        PLATFORM      UNIFORM   LOWERED     RAISED     WEIGHT
             NUMBER      SIZE (W x L)   CAPACITY   HEIGHT     HEIGHT    (POUND)
           EHU-2 �       52½" x 55¾"    2,000 lb.   3½"       33½"        592
           EHU-3 �       53½" x 63"     3,000 lb.   4¼"       33½"        777
           EHE-2         52½" x 55¾"    2,000 lb.   3½"       33½"        650
           EHE-3         53½" x 63"     3,000 lb.   4¼"       33½"        805
           304 STAINLESS STEEL (external power unit is powder coated steel)
           EHU-12-SS      50" x 59"     1,200 lb.   3 /8"     33½"        592                          model EHE-2
                                                     3
                                                                                                  Power unit not shown
