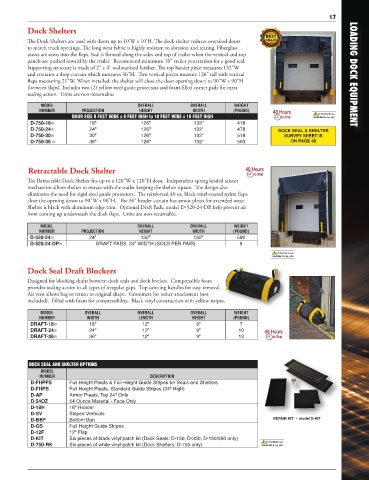

          Dock Shelters

          The Dock Shelters are used with doors up to 10'W x 10'H. The dock shelter reduces oversized doors
          to match truck openings. The long wear fabric is highly resistant to abrasion and tearing. Fiberglass
          staves are sewn into the flaps. Seal is formed along the sides and top of trailer when the vertical and top
          panels are pushed inward by the trailer.  Recommend minimum 10" trailer penetration for a good seal.
          Supporting structure is made of 2" x 4" wolmanized lumber. The top header piece measures 132"W
          and contains a drop curtain which measures 36"H.  Two vertical pieces measure 126" tall with vertical    LOADING DOCK EQUIPMENT
          flaps measuring 21"W. When installed, the shelter will close the door opening down to 90"W x 90"H
          (between flaps). Includes two (2) yellow steel guide protectors and foam-filled corner pads for extra
          sealing action.  Units are non-returnable.

              MODEL                           OVERALL          OVERALL        WEIGHT
              NUMBER        PROJECTION         HEIGHT           WIDTH        (POUND)
                                                                                                         CA Residents see
                         DOOR SIZE 8 FEET WIDE x 8 FEET HIGH to 10 FEET WIDE x 10 FEET HIGH            WARNING B, Pg. 459
           D-750-18�          18"              126"             132"           418
           D-750-24�          24"              126"             132"           478          DOCK SEAL & SHELTER
           D-750-30�          30"              126"             132"           518            SURVEY SHEET IS
           D-750-36 �         36"              126"             132"           563              ON PAGE 48

          Retractable Dock Shelter
          The Retractable Dock Shelter fits up to a 120"W x 120"H door.  Independent spring loaded scissor
          mechanism allows shelter to retract with the trailer keeping the shelter square.  The design also
          eliminates the need for rigid steel guide protectors.  The reinforced 40 oz. black vinyl-coated nylon flaps
          close the opening down to 90"W x 90"H.  The 36" header curtain has armor pleats for extended wear.
          Shelter is black with aluminum edge trim.  Optional Draft Pads, model D-520-24-DP, help prevent air
          from coming up underneath the dock flaps.  Units are non-returnable.

              MODEL                           OVERALL          OVERALL       WEIGHT
              NUMBER        PROJECTION        HEIGHT            WIDTH        (POUND)
           D-520-24�          24"              132"             132"          590
           D-520-24-DP�         DRAFT PADS, 24" WIDTH (SOLD PER PAIR)          9
                                                                                           CA Residents see
                                                                                          WARNING B, Pg. 459
          Dock Seal Draft Blockers

          Designed for blocking drafts between dock seals and dock levelers.  Compressible foam
          provides sealing action in all types of irregular gaps.  Top carrying handles for easy removal.
          Air vent allows bag to return to original shape.  Grommets for tether attachment (not
          included).  Filled with foam for compressibility.  Black vinyl construction with yellow stripes.
              MODEL          OVERALL          OVERALL          OVERALL        WEIGHT
              NUMBER         WIDTH            LENGTH            HEIGHT       (POUND)
           DRAFT-18�          18"              12"               9"            7
           DRAFT-24�          24"              12"               9"            10
           DRAFT-36�          36"              12"               9"            13

              NUMBER                              DESCRIPTION
           D-FHPFS      Full Height Pleats & Full Height Guide Stripes for Seals and Shelters
           D-FHPS       Full Height Pleats, Standard Guide Stripes (24" High)
           D-AP         Armor Pleats, Top 24" Only
           D-54OZ       54 Ounce Material - Face Only
           D-18H        18" Header
           D-SV         Sloped Verticals
           D-BBF        Bottom Bun                                                        REPAIR KIT  •  model D-KIT
           D-GS         Full Height Guide Stripes
           D-12F        12" Flap
           D-KIT        Six pieces of black vinyl patch kit (Dock Seals: D-150, D-350, D-150/350 only)
                                                                                        CA Residents see
           D-750-RK     Six pieces of white vinyl patch kit (Dock Shelters: D-750 only)  WARNING B, Pg. 459
