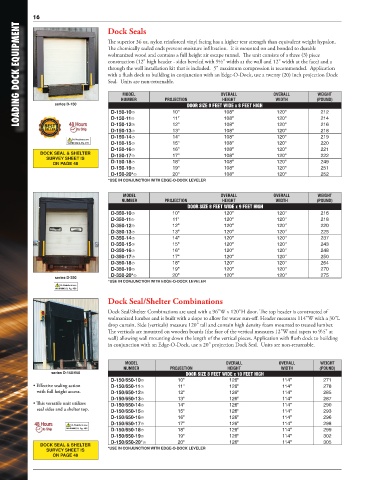

16                      Dock Seals
       LOADING DOCK EQUIPMENT       The chemically sealed ends prevent moisture infiltration.  It is mounted on and bonded to durable  (POUND)


                                    The superior 36 oz. nylon reinforced vinyl facing has a higher tear strength than equivalent weight hypalon.
                                    wolmanized wood and contains a full height air escape tunnel.  The unit consists of a three (3) piece
                                    construction (12" high header - sides beveled with 9½" width at the wall and 12" width at the face) and a
                                    through the wall installation kit that is included.  5" maximum compression is recommended.  Application
                                    with a flush dock to building in conjunction with an Edge-O-Dock, use a twenty (20) inch projection Dock
                                    Seal.  Units are non-returnable.

                                                                                          OVERALL
                                                                         OVERALL
                                                                                                         WEIGHT
                                         MODEL
                                                                                           WIDTH
                                                                          HEIGHT
                                                       PROJECTION
                                         NUMBER
                   series D-150
                                                                          108"
                                     D-150-10�
                                                         11"
                                                                          108"
                                                                                                          214
                                                                                           120"
                                     D-150-11�
                                                                          108"
                                                                                           120"
                                     D-150-12�
                                                         12"
                                                                                                          216
                                                                          108"
                                     D-150-13�           10"  DOOR SIZE 8 FEET WIDE x 8 FEET HIGH  120"   212
                                                                                                          218
                                                         13"
                                                                                           120"
                                     D-150-14�           14"              108"             120"           219
                        CA Residents see
                       WARNING B, Pg. 459  D-150-15�     15"              108"             120"           220
                                     D-150-16�           16"              108"             120"           221
              DOCK SEAL & SHELTER    D-150-17�           17"              108"             120"           222
                SURVEY SHEET IS
                  ON PAGE 48         D-150-18�           18"              108"             120"           249
                                     D-150-19�           19"              108"             120"           251
                                     D-150-20*�          20"              108"             120"           252
                                    *USE IN CONJUNCTION WITH EDGE-O-DOCK LEVELER
                                         MODEL                           OVERALL          OVERALL        WEIGHT
                                         NUMBER        PROJECTION         HEIGHT           WIDTH         (POUND)
                                                              DOOR SIZE 8 FEET WIDE x 9 FEET HIGH
                                     D-350-10�           10"              120"             120"           216
                                     D-350-11�           11"              120"             120"           218
                                     D-350-12�           12"              120"             120"           220
                                     D-350-13�           13"              120"             120"           225
                                     D-350-14�           14"              120"             120"           237
                                     D-350-15�           15"              120"             120"           243
                                     D-350-16�           16"              120"             120"           248
                                     D-350-17�           17"              120"             120"           250
                                     D-350-18�           18"              120"             120"           264
                                     D-350-19�           19"              120"             120"           270
                   series D-350      D-350-20*�          20"              120"             120"           275
                                    *USE IN CONJUNCTION WITH EDGE-O-DOCK LEVELER
                    CA Residents see
                   WARNING B, Pg. 459
                                    Dock Seal/Shelter Combinations
                                    Dock Seal/Shelter Combinations are used with a 96"W x 120"H door. The top header is constructed of
                                    wolmanized lumber and is built with a slope to allow for water run-off. Header measures 114"W with a 30"L
                                    drop curtain. Side (verticals) measure 120" tall and contain high density foam mounted to treated lumber.
                                    The verticals are mounted on wooden boards (the face of the vertical measures 12"W and tapers to 9½" at
                                    wall) allowing wall mounting down the length of the vertical pieces. Application with flush dock to building
                                    in conjunction with an Edge-O-Dock, use a 20" projection Dock Seal.  Units are non-returnable.
                                          MODEL                            OVERALL          OVERALL       WEIGHT
                                         NUMBER          PROJECTION        HEIGHT            WIDTH       (POUND)
                  series D-150/650                            DOOR SIZE 8 FEET WIDE x 10 FEET HIGH
                                     D-150/650-10�         10"              126"             114"          271
            • Effective sealing action    D-150/650-11�    11"              126"             114"          278
               with full height access.  D-150/650-12�     12"              126"             114"          285
                                     D-150/650-13�         13"              126"             114"          287
            • This versatile unit utilizes   D-150/650-14�  14"             126"             114"          290
               seal sides and a shelter top.
                                     D-150/650-15�         15"              126"             114"          293
                                     D-150/650-16�         16"              126"             114"          296
                                     D-150/650-17�         17"              126"             114"          298
                        CA Residents see
                       WARNING B, Pg. 459                  18"              126"             114"          299
                                     D-150/650-18�
                                     D-150/650-19�         19"              126"             114"          302
                                     D-150/650-20*�        20"              126"             114"          305
              DOCK SEAL & SHELTER
                SURVEY SHEET IS     *USE IN CONJUNCTION WITH EDGE-O-DOCK LEVELER
                  ON PAGE 48
