Page 16 - Storage Solutions

391

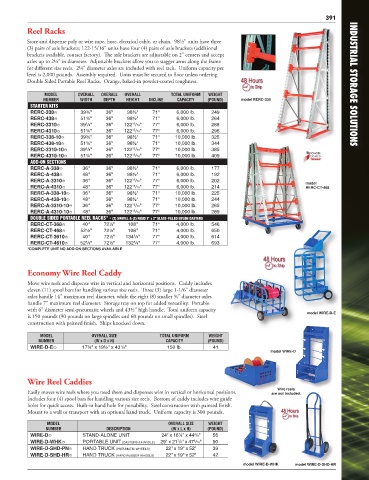

Reel Racks

Store and dispense poly or wire rope, hose, electrical cable, or chain. 98½" units have three
(3) pairs of axle brackets; 122-15/16" units have four (4) pairs of axle brackets (additional
brackets available, contact factory). The axle brackets are adjustable on 2" centers and accept
axles up to 2½" in diameter. Adjustable brackets allow you to stagger arms along the frame
for different size reels. 2¼" diameter axles are included with reel rack. Uniform capacity per
level is 2,000 pounds. Assembly required. Units must be secured to floor unless ordering
Double Sided Portable Reel Racks. Orange, baked-in powder-coated toughness. INDUSTRIAL STORAGE SOLUTIONS

MODEL OVERALL OVERALL OVERALL TOTAL UNIFORM WEIGHT
NUMBER WIDTH DEPTH HEIGHT INCLINE CAPACITY (POUND) model RERC-338
STARTER KITS
RERC-338� 39¾" 36" 98½" 71° 6,000 lb. 249
RERC-438� 51¼" 36" 98½" 71° 6,000 lb. 264
5
15
RERC-3310� 39 /8" 36" 122 /16" 77° 6,000 lb. 288
15
RERC-4310� 51¼" 36" 122 /16" 77° 6,000 lb. 296
RERC-338-10� 39¾" 36" 98½" 71° 10,000 lb. 325
RERC-438-10� 51¼" 36" 98½" 71° 10,000 lb. 344
15
5
RERC-3310-10� 39 /8" 36" 122 /16" 77° 10,000 lb. 385
RERC-4310-10� 51¼" 36" 122 /16" 77° 10,000 lb. 409
15
ADD-ON SECTIONS
RERC-A-338� 36" 36" 98½" 71° 6,000 lb. 177
RERC-A-438� 48" 36" 98½" 71° 6,000 lb. 192
15
RERC-A-3310� 36" 36" 122 /16" 77° 6,000 lb. 202 model
15
RERC-A-4310� 48" 36" 122 /16" 77° 6,000 lb. 214 RERC-CT-468
RERC-A-338-10� 36" 36" 98½" 71° 10,000 lb. 225
RERC-A-438-10� 48" 36" 98½" 71° 10,000 lb. 244
15
RERC-A-3310-10� 36" 36" 122 /16" 77° 10,000 lb. 265
15
RERC-A-4310-10� 48" 36" 122 /16" 77° 10,000 lb. 289
DOUBLE SIDED PORTABLE REEL RACKS* - (2) SWIVEL & (2) RIGID 8" x 2" GLASS-FILLED NYLON CASTERS
RERC-CT-368� 40" 72½" 108" 71° 4,000 lb. 546
RERC-CT-468� 52½" 72½" 108" 71° 4,000 lb. 650
3
RERC-CT-3610� 40" 72½" 134 /8" 77° 4,000 lb. 614
3
3
RERC-CT-4610� 52 /8" 72½" 132 /8" 77° 4,000 lb. 693
*COMPLETE UNIT NO ADD-ON SECTIONS AVAILABLE
Economy Wire Reel Caddy
Move wire reels and dispense wire in vertical and horizontal positions. Caddy includes
eleven (11) spool bars for handling various size reels. Three (3) large 1-1/6" diameter
axles handle 14" maximum reel diameter, while the eight (8) smaller ¾" diameter axles
handle 7" maximum reel diameter. Storage tray on top for added versatility. Portable
with 6" diameter semi-pneumatic wheels and 43½" high handle. Total uniform capacity
is 150 pounds (90 pounds on large spindles and 60 pounds on small spindles). Steel model WIRE-D-E
construction with painted finish. Ships knocked down.
MODEL OVERALL SIZE TOTAL UNIFORM WEIGHT
NUMBER (W x D x H) CAPACITY (POUND)
1
WIRE-D-E� 17¾" x 19½" x 43 /8" 150 lb. 41
model WIRE-D

Wire Reel Caddies
Wire reels
Easily moves wire reels where you need them and dispenses wire in vertical or horizontal positions. are not included.
Includes four (4) spool bars for handling various size reels. Bottom of caddy includes wire guide
holes for quick access. Built-in hand hole for portability. Steel construction with painted finish.
Mount to a wall or transport with an optional hand truck. Uniform capacity is 300 pounds.

MODEL OVERALL SIZE WEIGHT
NUMBER DESCRIPTION (W x L x H) (POUND)
3
WIRE-D� STAND-ALONE UNIT 24" x 16¼" x 44 /8" 56
5
7
WIRE-D-WHK� PORTABLE UNIT (CASTERS & HANDLE) 29" x 21 /8" x 47 /16" 90
WIRE-D-SHD-PN� HAND TRUCK (PNEUMATIC WHEELS) 22" x 19" x 52" 39
WIRE-D-SHD-HR� HAND TRUCK (HARD RUBBER WHEELS) 22" x 19" x 52" 42
model WIRE-D-WHK model WIRE-D-SHD-HR
