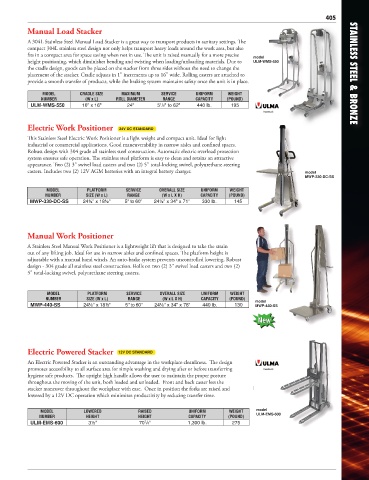

Page 2 - Stainless Steel & Bronze Products
P. 2

405
          Manual Load Stacker

          A 304L Stainless Steel Manual Load Stacker is a great way to transport products in sanitary settings. The
          compact 304L stainless steel design not only helps transport heavy loads around the work area, but also
          fits in a compact area for space saving when not in use. The unit is raised manually for a more precise   model
          height positioning, which diminishes bending and twisting when loading/unloading materials. Due to   ULM-WMS-550
          the cradle design, goods can be placed on the stacker from three sides without the need to change the
          placement of the stacker. Cradle adjusts in 1" increments up to 16" wide. Rolling casters are attached to   STAINLESS STEEL & BRONZE
          provide a smooth transfer of products, while the braking system maintains safety once the unit is in place.
               MODEL       CRADLE SIZE   MAXIMUM      SERVICE    UNIFORM   WEIGHT
              NUMBER         (W x L)   ROLL DIAMETER  RANGE      CAPACITY  (POUND)
           ULM-WMS-550      16" x 16"      24"      5 /8" to 62"  440 lb.   195
                                                     1

          Electric Work Positioner      24V DC STANDARD

          This Stainless Steel Electric Work Positioner is a light weight and compact unit. Ideal for light
          industrial or commercial applications. Good maneuverability in narrow aisles and confined spaces.
          Robust design with 304 grade all stainless steel construction. Automatic electric overload protection
          system ensures safe operation. The stainless steel platform is easy to clean and retains an attractive
          appearance. Two (2) 3" swivel load casters and two (2) 5" total-locking swivel, polyurethane steering
          casters. Includes two (2) 12V AGM batteries with an integral battery charger.              model
                                                                                                     MWP-330-DC-SS
                MODEL        PLATFORM     SERVICE    OVERALL SIZE  UNIFORM  WEIGHT
                NUMBER       SIZE (W x L)  RANGE      (W x L X H)  CAPACITY  (POUND)
           MWP-330-DC-SS    24½" x 18½"   5" to 60"  24½" x 34" x 71"  330 lb.  145





          Manual Work Positioner

          A Stainless Steel Manual Work Positioner is a lightweight lift that is designed to take the strain
          out of any lifting job. Ideal for use in narrow aisles and confined spaces. The platform height is
          adjustable with a manual hand winch. An auto-brake system prevents uncontrolled lowering. Robust
          design - 304 grade all stainless steel construction. Rolls on two (2) 3" swivel load casters and two (2)
          5" total-locking swivel, polyurethane steering casters.


                MODEL         PLATFORM    SERVICE    OVERALL SIZE  UNIFORM  WEIGHT
                NUMBER       SIZE (W x L)  RANGE      (W x L X H)  CAPACITY  (POUND)  model
           MWP-440-SS       24½" x 18½"   5" to 60"  24½" x 34" x 76"  440 lb.  130  MWP-440-SS
                                                                                     New





          Electric Powered Stacker      12V DC STANDARD
          An Electric Powered Stacker is an outstanding advantage in the workplace cleanliness.  The design
          promotes accessibility to all surface area for simple washing and drying after or before transferring
          hygiene safe products.  The upright high handle allows the user to maintain the proper posture
          throughout the moving of the unit, both loaded and unloaded.  Front and back caster lets the
          stacker maneuver throughout the workplace with ease.  Once in position the forks are raised and
          lowered by a 12V DC operation which minimizes productivity by reducing transfer time.

              MODEL         LOWERED           RAISED           UNIFORM      WEIGHT   model
                                                                                     ULM-EMS-600
              NUMBER         HEIGHT           HEIGHT           CAPACITY     (POUND)
           ULM-EMS-600        3½"              70 /8"         1,300 lb.      275
                                                7
   1   2   3   4   5   6   7
