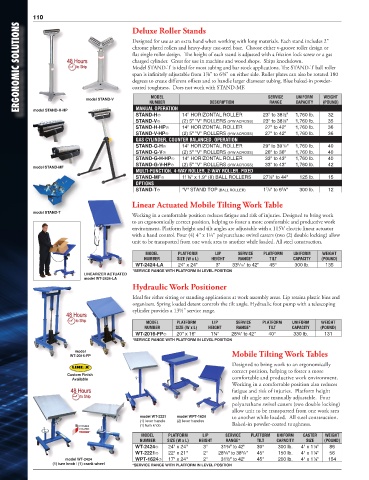

110                             Deluxe Roller Stands
       ERGONOMIC SOLUTIONS                  chrome plated rollers and heavy-duty cast-steel base.  Choose either v-groove roller design or


                                            Designed for use as an extra hand when working with long materials. Each stand includes 2"
                                            flat single roller design.  The height of each stand is adjusted with a friction lock screw or a gas
                                            charged cylinder.  Great for use in machine and wood shops.  Ships knockdown.
                                            Model STAND-T is ideal for most tubing and bar stock applications. The STAND-T ball roller
                                            span is infinitely adjustable from 1⅞" to 6⅜" on either side. Roller plates can also be rotated 180
                                            degrees to create different offsets and to handle larger diameter tubing. Blue baked-in powder-
                                            coated toughness.  Does not work with STAND-MF.
                                                  MODEL
                                                                                                  UNIFORM
                                                                                         SERVICE
                                                                                                           WEIGHT
                             model STAND-V
                                                                      DESCRIPTION
                                                                                         RANGE
                                                  NUMBER
                                             MANUAL OPERATION
            model STAND-H-HP
                                                                                                            32
                                                                                                  1,760 lb.
                                             STAND-H�        14" HORIZONTAL ROLLER     23" to 38½"  CAPACITY  (POUND)
                                             STAND-V�        (2) 5" "V" ROLLERS (9"W ACROSS)  23" to 38½"  1,760 lb.  35
                                             STAND-H-HP�     14" HORIZONTAL ROLLER      27" to 42"  1,760 lb.  36
                                             STAND-V-HP�     (2) 5" "V" ROLLERS (9"W ACROSS)  27" to 42"  1,760 lb.  36
                                             GAS CYLINDER, COUNTER BALANCED, OPERATION
                                             STAND-G-H�      14" HORIZONTAL ROLLER     29" to 39 /8"  1,760 lb.  40
                                                                                             1
                                             STAND-G-V�      (2) 5" "V" ROLLERS (9"W ACROSS)  26" to 36"  1,760 lb.  40
                                             STAND-G-H-HP�   14" HORIZONTAL ROLLER      33" to 43"  1,760 lb.  40
                                             STAND-G-V-HP�   (2) 5" "V" ROLLERS (9"W ACROSS)  33" to 43"  1,760 lb.  42
            model STAND-MF
                                             MULTI-FUNCTION, 4-WAY ROLLER, 2-WAY ROLLER, FIXED
                                             STAND-MF�       11¼" x 1.9" (8) BALL ROLLERS  27½" to 44"  125 lb.  15
                                             OPTIONS
                                                                                        7
                                                                                             3
                                             STAND-T�        "V" STAND TOP (BALL ROLLER)  1 /8" to 6 /8"  300 lb.  12
                                            Linear Actuated Mobile Tilting Work Table
            model STAND-T
                                            Working in a comfortable position reduces fatigue and risk of injuries. Designed to bring work
                                            to an ergonomically correct position, helping to foster a more comfortable and productive work
                                            environment. Platform height and tilt angles are adjustable with a 115V electric linear actuator
                                            with a hand control. Four (4) 4" x 1¼" polyurethane swivel casters (two (2) double locking) allow
                                            unit to be transported from one work area to another while loaded. All steel construction.
                                                 MODEL     PLATFORM    LIP     SERVICE  PLATFORM  UNIFORM  WEIGHT
                                                NUMBER     SIZE (W x L)  HEIGHT  RANGE*  TILT    CAPACITY  (POUND)
                                             WT-2424-LA    24" x 24"    3"   33 /16" to 42"  45°  300 lb.  135
                                                                               9
                                            *SERVICE RANGE WITH PLATFORM IN LEVEL POSITION
                            LINEARIZER ACTUATED
                            model WT-2424-LA
                                            Hydraulic Work Positioner
                                            Ideal for either sitting or standing applications at work assembly areas. Lip retains plastic bins and
                                            organizers. Spring loaded detent controls the tilt angle. Hydraulic foot pump with a telescoping
                                            cylinder provides a 13¼" service range.
                                                 MODEL     PLATFORM   LIP     SERVICE  PLATFORM  UNIFORM  WEIGHT
                                                NUMBER    SIZE (W x L)  HEIGHT  RANGE*   TILT   CAPACITY  (POUND)
                                             WT-2016-FP�   20" x 16"  1¼"    28¾" to 42"  40°    330 lb.   131
                                            *SERVICE RANGE WITH PLATFORM IN LEVEL POSITION
                          model                                              Mobile Tilting Work Tables
                        WT-2016-FP
                                                                             Designed to bring work to an ergonomically
                                                                             correct position, helping to foster a more
                       Custom Finish
                         Available                                           comfortable and productive work environment.
                                                                             Working in a comfortable position also reduces
                                                                             fatigue and risk of injuries.  Platform height
                                                                             and tilt angle are manually adjustable.  Four
                                                                             polyurethane swivel casters (two double locking)
                                                                             allow unit to be transported from one work area
                                               model WT-2221  model WPT-1624  to another while loaded.  All steel construction.
                                               (1) lever handle  (2) lever handles
                                               (1) turn knob                 Baked-in powder-coated toughness.
                                               MODEL    PLATFORM   LIP     SERVICE  PLATFORM  UNIFORM  CASTER  WEIGHT
                                               NUMBER   SIZE (W x L)  HEIGHT  RANGE*  TILT  CAPACITY  SIZE  (POUND)
                                             WT-2424�   24" x 24"  3"    31¾" to 42"  30°   300 lb.  4" x 1¼"  86
                                                                                3
                                                                          3
                                             WT-2221�   22" x 21"  2"   28 /8" to 38 /8"  45°  150 lb.  4" x 1¼"  56
                      model WT-2424          WPT-1624�  17" x 24"  2"    31½" to 42"  45°   200 lb.  4" x 1¼"  154
                  (1) turn knob / (1) crank wheel  *SERVICE RANGE WITH PLATFORM IN LEVEL POSITION
