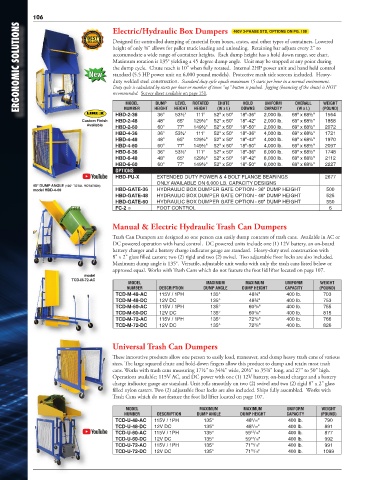

106 Electric/Hydraulic Box Dumpers 460V 3-PHASE STD, OPTIONS ON PG. 108
ERGONOMIC SOLUTIONS New height of only ⅜" allows for pallet truck loading and unloading. Retaining bar adjusts every 2" to

Designed for controlled dumping of material from boxes, crates, and other types of containers. Lowered
accommodate a wide range of container heights. Each dump height has a hold down range, see chart.
Maximum rotation is 135° yielding a 45 degree dump angle. Unit may be stopped at any point during
the dump cycle. Chute reach is 10" when fully rotated. Internal 2HP power unit and hand held control
standard (5.5 HP power unit on 6,000 pound models). Protective mesh side screens included. Heavy-
duty welded steel construction. Standard duty cycle equals maximum 15 starts per hour in a normal environment.
Duty cycle is calculated by starts per hour or number of times "up" button is pushed. Jogging (bouncing of the chute) is NOT
recommended. Survey sheet available on page 151.
WEIGHT
OVERALL
MODEL
UNIFORM
HOLD
CHUTE
DUMP
LEVEL
HEIGHT
(W x L)
(W x L)
CAPACITY
NUMBER
DOWNS
HBD-2-36 HEIGHT HEIGHT ROTATED 52" x 50" 18"-36" 2,000 lb. 69" x 68½" (POUND)
53½"
36"
1564
111"
Custom Finish HBD-2-48 48" 65" 129½" 52" x 50" 18"-42" 2,000 lb. 69" x 68½" 1858
Available HBD-2-60 60" 77" 149½" 52" x 50" 18"-50" 2,000 lb. 69" x 68½" 2072
HBD-4-36 36" 53½" 111" 52" x 50" 18"-36" 4,000 lb. 69" x 68½" 1721
HBD-4-48 48" 65" 129½" 52" x 50" 18"-42" 4,000 lb. 69" x 68½" 1970
HBD-4-60 60" 77" 149½" 52" x 50" 18"-50" 4,000 lb. 69" x 68½" 2097
HBD-6-36 36" 53½" 111" 52" x 50" 18"-36" 6,000 lb. 69" x 68½" 1748
HBD-6-48 48" 65" 129½" 52" x 50" 18"-42" 6,000 lb. 69" x 68½" 2112
HBD-6-60 60" 77" 149½" 52" x 50" 18"-50" 6,000 lb. 69" x 68½" 2227
OPTIONS
HBD-PU-X EXTENDED DUTY POWER & 4 BOLT FLANGE BEARINGS 2677
ONLY AVAILABLE ON 6,000 LB. CAPACITY DESIGNS
45° DUMP ANGLE (135° TOTAL ROTATION)
model HBD-4-60 HBD-GATE-36 HYDRAULIC BOX DUMPER GATE OPTION - 36" DUMP HEIGHT 500
HBD-GATE-48 HYDRAULIC BOX DUMPER GATE OPTION - 48" DUMP HEIGHT 525
HBD-GATE-60 HYDRAULIC BOX DUMPER GATE OPTION - 60" DUMP HEIGHT 550
FC-2 � FOOT CONTROL 6
Manual & Electric Hydraulic Trash Can Dumpers
Trash Can Dumpers are designed so one person can easily dump contents of trash cans. Available in AC or
DC powered operation with hand control. DC powered units include one (1) 12V battery, an on-board
battery charger and a battery charge indicator gauge are standard. Heavy-duty steel construction with
8" x 2" glass filled casters; two (2) rigid and two (2) swivel. Two adjustable floor locks are also included.
Maximum dump angle is 135°. Versatile, adjustable unit works with only the trash cans listed below or
approved equal. Works with Trash Cans which do not feature the foot lid lifter located on page 107.
model
TCD-M-72-AC
MODEL MAXIMUM MAXIMUM UNIFORM WEIGHT
NUMBER DESCRIPTION DUMP ANGLE DUMP HEIGHT CAPACITY (POUND)
TCD-M-48-AC 115V / 1PH 135° 48¾" 400 lb. 703
TCD-M-48-DC 12V DC 135° 48¾" 400 lb. 753
TCD-M-60-AC 115V / 1PH 135° 60 /8" 400 lb. 755
3
TCD-M-60-DC 12V DC 135° 60 /8" 400 lb. 815
3
TCD-M-72-AC 115V / 1PH 135° 72 /8" 400 lb. 766
3
TCD-M-72-DC 12V DC 135° 72 /8" 400 lb. 826
3
Universal Trash Can Dumpers
These innovative products allow one person to easily load, maneuver, and dump heavy trash cans of various
sizes. The large squared chute and hold-down fingers allow this product to dump and retain most trash
cans. Works with trash cans measuring 17½" to 34¾" wide, 20½" to 35⅞" long, and 27" to 50" high.
Operations available; 115V AC, and DC power with one (1) 12V battery, on-board charger and a battery
charge indicator gauge are standard. Unit rolls smoothly on two (2) swivel and two (2) rigid 8" x 2" glass
filled nylon casters. Two (2) adjustable floor locks are also included. Ships fully assembled. Works with
Trash Cans which do not feature the foot lid lifter located on page 107.
MODEL MAXIMUM MAXIMUM UNIFORM WEIGHT
NUMBER DESCRIPTION DUMP ANGLE DUMP HEIGHT CAPACITY (POUND)
TCD-U-48-AC 115V / 1PH 135° 48 /16" 400 lb. 790
9
TCD-U-48-DC 12V DC 135° 48 /16" 400 lb. 891
9
TCD-U-60-AC 115V / 1PH 135° 59 /16" 400 lb. 877
13
TCD-U-60-DC 12V DC 135° 59 /16" 400 lb. 992
13
TCD-U-72-AC 115V / 1PH 135° 71 /16" 400 lb. 991
15
TCD-U-72-DC 12V DC 135° 71 /16" 400 lb. 1099
15
