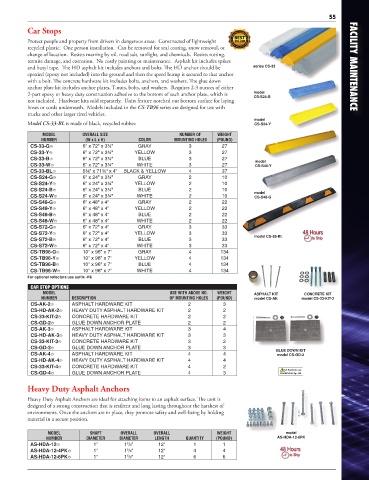

Page 50 - Catalog 112

55
Car Stops

Protect people and property from drivers in dangerous areas. Constructed of lightweight
recycled plastic. One person installation. Can be removed for seal coating, snow removal, or
change of location. Resists marring by oil, road salt, sunlight, and chemicals. Resists rotting,
termite damage, and corrosion. No costly painting or maintenance. Asphalt kit includes spikes
and butyl tape. The HD asphalt kit includes anchors and bolts. The HD anchor should be series CS-33 FACILITY MAINTENANCE
epoxied (epoxy not included) into the ground and then the speed bump is secured to that anchor
with a bolt. The concrete hardware kit includes bolts, anchors, and washers. The glue down
anchor plate kit includes anchor plates, T-nuts, bolts, and washers. Requires 2-3 ounces of either
2-part epoxy or heavy duty construction adhesive to the bottom of each anchor plate, which is model
CS-S24-B
not included. Hardware kits sold separately. Units feature notched out bottom surface for laying
hoses or cords underneath. Models included in the CS-TB96 series are designed for use with
trucks and other larger tired vehicles.
model
Model CS-33-BL is made of black, recycled rubber. CS-S24-Y
MODEL OVERALL SIZE NUMBER OF WEIGHT
NUMBER (W x L x H) COLOR MOUNTING HOLES (POUND)
CS-33-G� 6" x 72" x 3¼" GRAY 3 27
CS-33-Y� 6" x 72" x 3¼" YELLOW 3 27
CS-33-B� 6" x 72" x 3¼" BLUE 3 27
model
CS-33-W� 6" x 72" x 3¼" WHITE 3 27 CS-S48-Y
CS-33-BL� 5¾" x 71¾" x 4" BLACK & YELLOW 4 37
CS-S24-G� 6" x 24" x 3¼" GRAY 2 10
CS-S24-Y� 6" x 24" x 3¼" YELLOW 2 10
CS-S24-B� 6" x 24" x 3¼" BLUE 2 10
model
CS-S24-W� 6" x 24" x 3¼" WHITE 2 10 CS-S48-G
CS-S48-G� 6" x 48" x 4" GRAY 2 22
CS-S48-Y� 6" x 48" x 4" YELLOW 2 22
CS-S48-B� 6" x 48" x 4" BLUE 2 22
CS-S48-W� 6" x 48" x 4" WHITE 2 22
CS-S72-G� 6" x 72" x 4" GRAY 3 33
CS-S72-Y� 6" x 72" x 4" YELLOW 3 33
model CS-33-BL
CS-S72-B� 6" x 72" x 4" BLUE 3 33
CS-S72-W� 6" x 72" x 4" WHITE 3 33
CS-TB96-G� 10" x 96" x 7" GRAY 4 134
CS-TB96-Y� 10" x 96" x 7" YELLOW 4 134
CS-TB96-B� 10" x 96" x 7" BLUE 4 134
CS-TB96-W� 10" x 96" x 7" WHITE 4 134
For optional reflectors use suffix -RE
CAR STOP OPTIONS
MODEL USE WITH ABOVE NO. WEIGHT ASPHALT KIT CONCRETE KIT
NUMBER DESCRIPTION OF MOUNTING HOLES (POUND) model CS-AK model CS-33-KIT-3
CS-AK-2� ASPHALT HARDWARE KIT 2 3
CS-HD-AK-2� HEAVY DUTY ASPHALT HARDWARE KIT 2 2
CS-33-KIT-2� CONCRETE HARDWARE KIT 2 2
CS-GD-2� GLUE DOWN ANCHOR PLATE 2 2
CS-AK-3� ASPHALT HARDWARE KIT 3 4
CS-HD-AK-3� HEAVY DUTY ASPHALT HARDWARE KIT 3 3
CS-33-KIT-3� CONCRETE HARDWARE KIT 3 2
CS-GD-3� GLUE DOWN ANCHOR PLATE 3 3 GLUE DOWN KIT
CS-AK-4� ASPHALT HARDWARE KIT 4 4 model CS-GD-2
CS-HD-AK-4� HEAVY DUTY ASPHALT HARDWARE KIT 4 4
CS-33-KIT-4� CONCRETE HARDWARE KIT 4 2
CA Residents see
CS-GD-4� GLUE DOWN ANCHOR PLATE 4 3 WARNING B, Pg. 459
Heavy Duty Asphalt Anchors

Heavy Duty Asphalt Anchors are ideal for attaching items to an asphalt surface. The unit is
designed of a strong construction that is resilient and long lasting throughout the harshest of
environments. Once the anchors are in place, they promote safety and well-being by holding
material in a secure position.

MODEL SHAFT OVERALL OVERALL WEIGHT model
NUMBER DIAMETER DIAMETER LENGTH QUANTITY (POUND) AS-HDA-12-6PK
5
AS-HDA-12� 1" 1 /8" 12" 1 1
AS-HDA-12-4PK� 1" 1 /8" 12" 4 4
5
5
AS-HDA-12-6PK� 1" 1 /8" 12" 6 6
