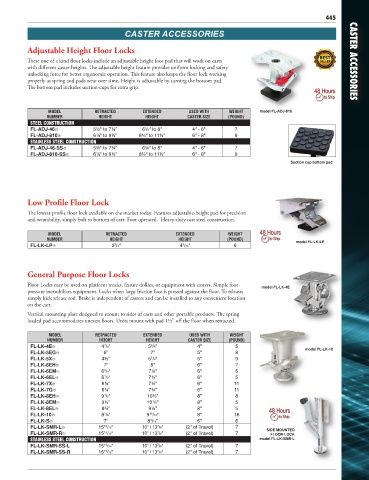

Page 420 - Catalog 112

445

CASTER ACCESSORIES

Adjustable Height Floor Locks

These one of a kind floor locks include an adjustable height foot pad that will work on carts CASTER ACCESSORIES
with different caster heights. The adjustable height feature provides uniform locking and safety
unlocking force for better ergonomic operation. This feature also keeps the floor lock working
properly as spring and pads wear over time. Height is adjustable by turning the bottom pad.
The bottom pad includes suction-cups for extra grip.

MODEL RETRACTED EXTENDED USED WITH WEIGHT model FL-ADJ-810
NUMBER HEIGHT HEIGHT CASTER SIZE (POUND)
STEEL CONSTRUCTION
FL-ADJ-46 5½" to 7¼" 6¼" to 8" 4" - 6" 7
FL-ADJ-810 6¼" to 9½" 8¼" to 11½" 6" - 8" 9
STAINLESS STEEL CONSTRUCTION
FL-ADJ-46-SS 5½" to 7¼" 6¼" to 8" 4" - 6" 7
FL-ADJ-810-SS 6¼" to 9½" 8¼" to 11½" 6" - 8" 9
Suction cup bottom pad

Low Profile Floor Lock

The lowest-profile floor lock available on the market today. Features adjustable-height pad for precision
and wearability, simply bolt to bottom of cart. Foot operated. Heavy-duty cast steel construction.

MODEL RETRACTED EXTENDED WEIGHT
NUMBER HEIGHT HEIGHT (POUND)
model FL-LK-LP
9
3
FL-LK-LP 3 /4" 4 /16" 6

General Purpose Floor Locks
Floor Locks may be used on platform trucks, fixture dollies, or equipment with casters. Simple foot model FL-LK-4E
pressure immobilizes equipment. Locks when large friction face is pressed against the floor. To release;
simply kick release rod. Brake is independent of casters and can be installed to any convenient location
on the cart.
Vertical mounting plate designed to mount to sides of carts and other portable products. The spring
loaded pad accommodates uneven floors. Units mount with pad 1½" off the floor when retracted.

MODEL RETRACTED EXTENDED USED WITH WEIGHT
NUMBER HEIGHT HEIGHT CASTER SIZE (POUND)
7
5
FL-LK-4E 4 /8" 5 /8" 4" 5
model FL-LK-10
FL-LK-5EG 6" 7" 5" 8
FL-LK-5X 4½" 5 /8" 5" 9
5
FL-LK-6EH 7" 8" 6" 7
3
FL-LK-6EM 6 /4" 7½" 6" 5
1
FL-LK-6EL 6 /2" 7¼" 6" 5
FL-LK-7X 6¼" 7¼" 6" 11
FL-LK-7G 6¼" 7¾" 6" 11
1
FL-LK-8EH 9 /2" 10½" 8" 8
1
FL-LK-8EM 9½" 10 /8" 8" 5
FL-LK-8EL 8¾" 9½" 8" 5
7
15
FL-LK-10 8 /8" 9 /16" 8" 16
3
FL-LK-S 7" 8 /16" 6" 6
15
7
FL-LK-SMR-L 15 /16" 10" / 13 /8" (2" of Travel) 7
SIDE MOUNTED
7
15
FL-LK-SMR-R 15 /16" 10" / 13 /8" (2" of Travel) 7 FLOOR LOCK
STAINLESS STEEL CONSTRUCTION model FL-LK-SMR-L
FL-LK-SMR-SS-L 15 /16" 10" / 13 /8" (2" of Travel) 7
15
7
FL-LK-SMR-SS-R 15 /16" 10" / 13 /8" (2" of Travel) 7
15
7
