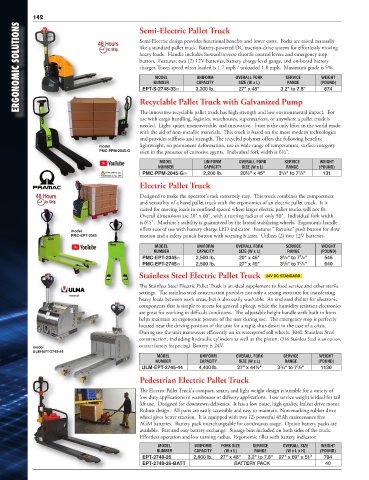

Page 137 - Catalog 112

142 Semi-Electric Pallet Truck
ERGONOMIC SOLUTIONS like a standard pallet truck. Battery-powered DC traction-drive system for effortlessly moving

Semi-Electric design provides functional benefits and lower costs. Forks are raised manually
heavy loads. Handle includes forward/reverse throttle control levers and emergency stop
button. Features: two (2) 12V batteries, battery charge level gauge, and on-board battery
charger. Travel speed when loaded is 1.7 mph / unloaded 1.8 mph. Maximum grade is 5%.
MODEL
OVERALL FORK
UNIFORM
SERVICE
WEIGHT
(POUND)
RANGE
NUMBER
CAPACITY
SIZE (W x L)
674
27" x 48"
3,300 lb.
3.2" to 7.8"
EPT-S-2748-33�
Recyclable Pallet Truck with Galvanized Pump
The innovative recyclable pallet truck has high strength and low environmental impact. For
use with cargo handling, logistics, warehouses, supermarkets, or anywhere a pallet truck is
needed. Light, quiet, maneuverable, and innovative. I-ton is the only lifter in the world made
with the aid of non-metallic materials. This truck is based on the most modern technologies
and provides stiffness and strength. The recycled polymer offers the following benefits;
model lightweight, no permanent deformation, use in wide range of temperatures, surface integrity
PMC-PPM-2045-G even in the presence of corrosive agents. Individual fork width is 6½".
MODEL UNIFORM OVERALL FORK SERVICE WEIGHT
NUMBER CAPACITY SIZE (W x L) RANGE (POUND)
3
7
CA Residents see PMC-PPM-2045-G� 2,200 lb. 20½" x 45" 3 /8" to 7 /8" 131
WARNING A, Pg. 459
Electric Pallet Truck
Designed to make the operator's task extremely easy. This truck combines the compactness
and versatility of a hand pallet truck with the ergonomics of an electric pallet truck. It is
suited for moving loads in confined spaced where larger electric pallet trucks will not fit.
Overall dimensions are 20" x 60", with a turning radius of only 50". Individual fork width
is 6½". Machine's stability is guaranteed by the lateral stabilizing wheels. Ergonomic handle
offers ease of use with battery charge LED indicator. Features "Tortoise" push button for slow
model
PMC-EPT-2045 motion and a safety punch button with warning buzzer. Utilizes (2) two 12V batteries.
MODEL UNIFORM OVERALL FORK SERVICE WEIGHT
NUMBER CAPACITY SIZE (W x L) RANGE (POUND)
7
3
PMC-EPT-2045� 2,500 lb. 20" x 45" 3 /8" to 7 /8" 545
3
7
PMC-EPT-2745� 2,500 lb. 27" x 45" 3 /8" to 7 /8" 640
Stainless Steel Electric Pallet Truck 24V DC STANDARD
The Stainless Steel Electric Pallet Truck is an ideal supplement to food service and other sterile
settings. The stainless steel construction provides not only a strong structure for transferring
heavy loads between work areas, but is also easily washable. An enclosed shelter for electronic
components that is simple to access for general upkeep, while the humidity resistant electronics
are great for working in difficult conditions. The adjustable height handle with built in horn
helps maintain an ergonomic posture of the user during use. The emergency stop is perfectly
located near the driving position of the unit for a rapid shut-down in the case of a crisis.
During use the unit maneuvers efficiently on its waterproof roll wheels. 304L Stainless Steel
construction, including hydraulic cylinders as well as the piston. (316 Stainless Steel is an option,
contact factory for pricing). Battery is 24V.
model
ULM-EPT-2745-44
MODEL UNIFORM OVERALL FORK SERVICE WEIGHT
NUMBER CAPACITY SIZE (W x L) RANGE (POUND)
3
5
ULM-EPT-2745-44 4,400 lb. 27" x 44½" 3 /8" to 7 /8" 1130
Pedestrian Electric Pallet Truck
The Electric Pallet Truck's compact, smart, and light weight design is suitable for a variety of
low duty applications in warehouses or delivery applications. Low service weight is ideal for tail
lift use. Designed for downtown deliveries. It has a low noise, high quality, Italian drive motor.
Robust design. All parts are easily accessible and easy to maintain. Non-marking rubber drive
wheel gives better traction. It is equipped with two (2) powerful 45Ah maintenance free
AGM batteries. Battery pack interchangeable for continuous usage. Option battery packs are
available. Fast and easy battery exchange. Storage bins included on both sides of the truck.
Effortless operation and low turning radius. Ergonomic tiller with battery indicator.
MODEL UNIFORM FORK SIZE SERVICE OVERALL SIZE WEIGHT
NUMBER CAPACITY (W x L) RANGE (W x L x H) (POUND)
EPT-2748-26 2,600 lb. 27" x 48" 3.2" to 7.8" 27" x 69" x 51" 794
EPT-2748-26-BATT BATTERY PACK 40
