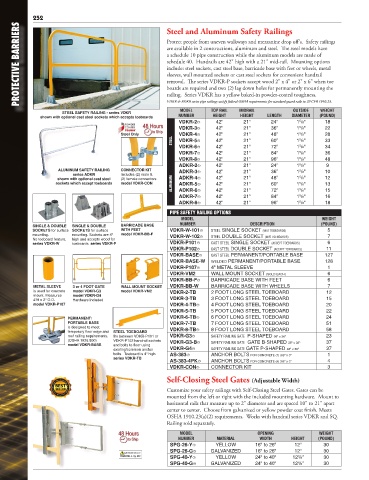

252                                         Steel and Aluminum Safety Railings
       PROTECTIVE BARRIERS                              Protect people from uneven walkways and mezzanine drop off's.  Safety railings



                                                        are available in 2 constructions, aluminum and steel.  The steel models have
                                                        a schedule 10 pipe construction while the aluminum models are made of
                                                        schedule 40.  Handrails are 42" high with a 21" mid-rail.  Mounting options
                                                        include: steel sockets, cast steel base, barricade base with feet or wheels, metal
                                                        sleeves, wall mounted sockets or cast steel sockets for convenient handrail
                                                        removal.  The series VDKR-P sockets accept wood 2" x 4" or 2" x 6" when toe
                                                        boards are required and two (2) lag down holes for permanently mounting the
                                                        railing.  Series VDKR has a yellow baked-in powder-coated toughness.
                                                        VDKR & ADKR series pipe railings satisfy federal OSHA requirements for standard guard rails in 29 CFR 1910.23.
                                                            MODEL     TOP RAIL  MIDRAIL          OUTSIDE  WEIGHT
                     STEEL SAFETY RAILING • series VDKR
              shown with optional cast steel sockets which accepts toeboards  NUMBER  HEIGHT  HEIGHT  LENGTH  DIAMETER  (POUND)
                                                                                                   5
                                                           VDKR-2�      42"      21"      24"     1 /8"    18
                                                                                                   5
                                                           VDKR-3�      42"      21"      36"     1 /8"    22
                                         Steel Only        VDKR-4�      42"      21"      48"     1 /8"    28
                                                                                                   5
                                                         STEEL  VDKR-5�  42"     21"      60"     1 /8"    33
                                                                                                   5
                                                                                                   5
                                                           VDKR-6�      42"      21"      72"     1 /8"    34
                                                                                                   5
                                                           VDKR-7�      42"      21"      84"     1 /8"    36
                                                                                                   5
                                                           VDKR-8�      42"      21"      96"     1 /8"    48
                                                                                                   5
                                                           ADKR-2�      42"      21"      24"     1 /8"     9
                    ALUMINUM SAFETY RAILING  CONNECTOR KIT  ADKR-3�     42"      21"      36"     1 /8"    10
                                                                                                   5
                         series ADKR     Includes (2) male &
                                                                                                   5
                    shown with optional cast steel  (2) female connectors   ADKR-4�  42"  21"  48"  1 /8"  12
                   sockets which accept toeboards  model VDKR-CON  ALUMINUM  ADKR-5�  42"  21"  60"  1 /8"  13
                                                                                                   5
                                                           ADKR-6�
                                                                                                   5
                                                                                 21"
                                                                        42"
                                                                                          84"
                                                                                                   5
                                                                                                  1 /8"
                                                                                                           16
                                                           ADKR-7�      42"      21"      72"     1 /8"    15
                                                                                                   5
                                                           ADKR-8�      42"      21"      96"     1 /8"    18
                                                         PIPE SAFETY RAILING OPTIONS
                                                            MODEL                                         WEIGHT
            SINGLE & DOUBLE   SINGLE & DOUBLE   BARRICADE BASE  NUMBER             DESCRIPTION            (POUND)
            SOCKETS for surface  SOCKETS for surface   WITH FEET  VDKR-W-101�  STEEL SINGLE SOCKET (W/O TOEBOARDS)  5
            mounting.    mounting. Sockets are 4"   model VDKR-BB-F  VDKR-W-102�  STEEL DOUBLE SOCKET (W/O TOEBOARDS)  7
            No toeboard feature.  high and accepts wood for
            series VDKR-W  toeboards. series VDKR-P      VDKR-P101�   CAST STEEL SINGLE SOCKET (ACCEPT TOEBOARDS)  6
                                                         VDKR-P102�   CAST STEEL DOUBLE SOCKET (ACCEPT TOEBOARDS)  11
                                                         VDKR-BASE�   CAST STEEL PERMANENT/PORTABLE BASE   127
                                                         VDKR-BASE-W  WELDED PERMANENT/PORTABLE BASE       128
                                                         VDKR-P107�   4" METAL SLEEVE                       1
                                                         VDKR-VM2     WALL MOUNT SOCKET (SOLD EACH)         6
                                                         VDKR-BB-F�   BARRICADE BASE WITH FEET              6
            METAL SLEEVE  3 or 4 FOOT GATE  WALL MOUNT SOCKET  VDKR-BB-W  BARRICADE BASE WITH WHEELS        7
            is used for concrete   model VDKR-G3  model VDKR-VM2  VDKR-2-TB  2 FOOT LONG STEEL TOEBOARD     12
            mount. Measures  model VDKR-G4
            4"H x 2" O.D.   Hardware included            VDKR-3-TB    3 FOOT LONG STEEL TOEBOARD            15
            model VDKR-P107                              VDKR-4-TB�   4 FOOT LONG STEEL TOEBOARD            20
                                                         VDKR-5-TB    5 FOOT LONG STEEL TOEBOARD            22
                       PERMANENT/                        VDKR-6-TB�   6 FOOT LONG STEEL TOEBOARD            24
                       PORTABLE BASE                     VDKR-7-TB    7 FOOT LONG STEEL TOEBOARD            51
                       is designed to meet
                       temporary floor edge and  STEEL TOEBOARD  VDKR-8-TB�  8 FOOT LONG STEEL TOEBOARD     58
                       roof railing requirements.  fits between VDKR-P101 or   VDKR-G3�  SAFETY RAILING GATE  P-SHAPED 36" x 36"   23
                       (OSHA 1926.500)  VDKR-P102 handrail sockets   VDKR-G3-B�                             37
                       model VDKR-BASE  and bolts to floor using      SAFETY RAILING GATE  GATE B-SHAPED 36" x 36"
                                      existing/common anchor   VDKR-G4�  SAFETY RAILING GATE GATE P-SHAPED 48" x 36"  37
                                      bolts.  Toeboard is 4" high.   AS-383�  ANCHOR BOLTS FOR CONCRETE (1) 3/8" x 3"  1
                                      series VDKR-TB
                                                         AS-383-4PK�  ANCHOR BOLTS FOR CONCRETE (4) 3/8" x 3"  4
                                                         VDKR-CON�    CONNECTOR KIT                         3
                                                        Self-Closing Steel Gates (Adjustable Width)
                                                        Customize your safety railings with Self-Closing Steel Gates. Gates can be
                                                        mounted from the left or right with the included mounting hardware.  Mount to
                                                        horizontal rails that measure up to 2" diameter and are spaced 10" to 21" apart
                                                        center to center.  Choose from galvanized or yellow powder coat finish. Meets
                                                        OSHA 1910.23(a)(2) requirements.  Works with handrail series VDKR and SQ.
                                                        Railing sold separately.
                                                            MODEL                    OPENING             WEIGHT
                                                           NUMBER       MATERIAL      WIDTH     HEIGHT   (POUND)
                                                         SPG-26-Y     YELLOW       16" to 26"   12"       30
                                                         SPG-26-G    GALVANIZED    16" to 26"   12"       30
