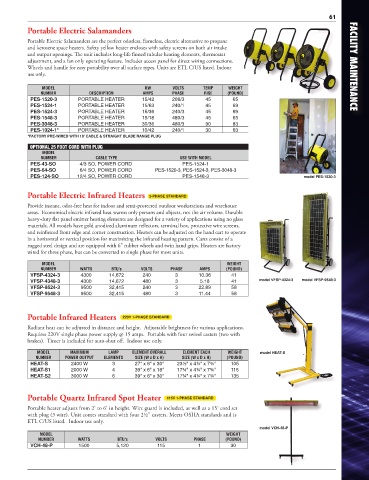

Page 12 - Facility Maintenance

61
Portable Electric Salamanders

Portable Electric Salamanders are the perfect odorless, flameless, electric alternative to propane
and kerosene space heaters. Safety yellow heater encloses with safety screens on both air intake
and output openings. The unit includes long-life finned tubular heating elements, thermostat
adjustment, and a fan only operating feature. Includes access panel for direct wiring connections.
Wheels and handle for easy portability over all surface types. Units are ETL C/US listed. Indoor FACILITY MAINTENANCE
use only.

MODEL KW VOLTS TEMP WEIGHT
NUMBER DESCRIPTION AMPS PHASE RISE (POUND)
PES-1520-3 PORTABLE HEATER 15/42 208/3 45 65
PES-1524-1 PORTABLE HEATER 15/63 240/1 45 69
PES-1524-3 PORTABLE HEATER 15/36 240/3 45 69
PES-1548-3 PORTABLE HEATER 15/18 480/3 45 65
PES-3048-3 PORTABLE HEATER 30/36 480/3 90 83
PES-1024-1* PORTABLE HEATER 10/42 240/1 30 63
*FACTORY PRE-WIRED WITH 10' CABLE & STRAIGHT BLADE RANGE PLUG
OPTIONAL 25 FOOT CORD WITH PLUG
MODEL
NUMBER CABLE TYPE USE WITH MODEL
PES-43-SO 4/3 SO, POWER CORD PES-1524-1
PES-64-SO 6/4 SO, POWER CORD PES-1520-3, PES-1524-3, PES-3048-3
PES-124-SO 12/4 SO, POWER CORD PES-1548-3 model PES-1520-3

Portable Electric Infrared Heaters 3-PHASE STANDARD
Provide instant, odor-free heat for indoor and semi-protected outdoor workstations and warehouse
areas. Economical electric infrared heat warms only persons and objects, not the air volume. Durable
heavy-duty flat panel emitter heating elements are designed for a variety of applications using no glass
materials. All models have gold anodized aluminum reflectors, terminal box, protective wire screens,
and reinforced front edge and corner construction. Heaters can be adjusted on the hand cart to operate
in a horizontal or vertical position for maximizing the infrared heating pattern. Carts consist of a
rugged steel design and are equipped with 6" rubber wheels and twin hand grips. Heaters are factory
wired for three phase, but can be converted to single phase for most units.
MODEL WEIGHT
NUMBER WATTS BTU's VOLTS PHASE AMPS (POUND)
VFSP-4324-3 4300 14,672 240 3 10.36 41
VFSP-4348-3 4300 14,672 480 3 5.18 41 model VFSP-4324-3 model VFSP-9548-3
VFSP-9524-3 9500 32,415 240 3 22.89 58
VFSP-9548-3 9500 32,415 480 3 11.44 58

Portable Infrared Heaters 220V 1-PHASE STANDARD
Radiant heat can be adjusted in distance and height. Adjustable brightness for various applications.
Requires 220V single phase power supply @ 15 amps. Portable with four swivel casters (two with
brakes). Timer is included for auto-shut off. Indoor use only.
MODEL MAXIMUM LAMP ELEMENT OVERALL ELEMENT EACH WEIGHT model HEAT-S
NUMBER POWER OUTPUT ELEMENTS SIZE (W x D x H) SIZE (W x D x H) (POUND)
HEAT-S 2400 W 3 27" x 6" x 30" 23½" x 4¼" x 7¾" 105
HEAT-S1 2000 W 4 39" x 6" x 18" 17¾" x 4¼" x 7¾" 115
HEAT-S2 3000 W 6 39" x 6" x 30" 17¾" x 4¼" x 7¾" 135

Portable Quartz Infrared Spot Heater 115V 1-PHASE STANDARD
Portable heater adjusts from 2' to 6' in height. Wire guard is included, as well as a 15' cord set
with plug (3 wire). Unit comes standard with four 2½" casters. Meets OSHA standards and is
ETL C/US listed. Indoor use only.
model VCH-48-P
MODEL WEIGHT
NUMBER WATTS BTU's VOLTS PHASE (POUND)
VCH-48-P 1500 5,120 115 1 30
