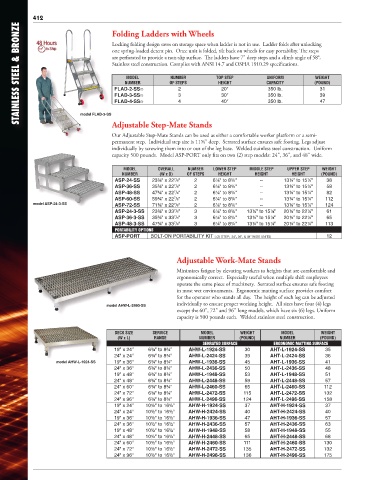

Page 9 - Stainless Steel & Bronze Products

412 Folding Ladders with Wheels
STAINLESS STEEL & BRONZE one spring-loaded detent pin. Once unit is folded, tilt back on wheels for easy portability. The steps 31

Locking folding design saves on storage space when ladder is not in use. Ladder folds after unlocking

are perforated to provide a non-slip surface. The ladders have 7" deep steps and a climb angle of 58°.
Stainless steel construction. Complies with ANSI 14.7 and OSHA 1910.29 specifications.

NUMBER
TOP STEP
UNIFORM
MODEL
WEIGHT
(POUND)
CAPACITY
OF STEPS
HEIGHT
NUMBER
350 lb.
20"
2
FLAD-2-SS
39
30"
FLAD-3-SS
3
350 lb.
47
4
350 lb.
40"
FLAD-4-SS
model FLAD-3-SS
Adjustable Step-Mate Stands
Our Adjustable Step-Mate Stands can be used as either a comfortable worker platform or a semi-
permanent step. Individual step size is 11¾" deep. Serrated surface ensures safe footing. Legs adjust
individually by screwing them into or out of the leg base. Welded stainless steel construction. Uniform
capacity 500 pounds. Model ASP-PORT only fits on two (2) step models: 24", 36", and 48" wide.
MODEL OVERALL NUMBER LOWER STEP MIDDLE STEP UPPER STEP WEIGHT
NUMBER (W x D) OF STEPS HEIGHT HEIGHT HEIGHT (POUND)
ASP-24-SS 23¾" x 22 /8" 2 6¼" to 8¼" -- 13¼" to 15¼" 38
7
ASP-36-SS 35¾" x 22 /8" 2 6¼" to 8¼" -- 13¼" to 15¼" 58
7
ASP-48-SS 47¾" x 22 /8" 2 6¼" to 8¼" -- 13¼" to 15¼" 82
7
ASP-60-SS 59¾" x 22 /8" 2 6¼" to 8¼" -- 13¼" to 15¼" 112
7
model ASP-24-3-SS ASP-72-SS 71¾" x 22 /8" 2 6¼" to 8¼" -- 13¼" to 15¼" 124
7
ASP-24-3-SS 23¾" x 33 /8" 3 6¼" to 8¼" 13¼" to 15¼" 20¼" to 22¼" 61
7
ASP-36-3-SS 35¾" x 33 /8" 3 6¼" to 8¼" 13¼" to 15¼" 20¼" to 22¼" 65
7
ASP-48-3-SS 47¾" x 33 /8" 3 6¼" to 8¼" 13¼" to 15¼" 20¼" to 22¼" 113
7
PORTABILITY OPTIONS
ASP-PORT BOLT-ON PORTABILITY KIT ( (2) STEP; 24", 36", & 48" WIDE UNITS) 12
Adjustable Work-Mate Stands
Minimizes fatigue by elevating workers to heights that are comfortable and
ergonomically correct. Especially useful when multiple shift employees
operate the same piece of machinery. Serrated surface ensures safe footing
in most wet environments. Ergonomic matting surface provides comfort
for the operator who stands all day. The height of each leg can be adjusted
individually to ensure proper working height. All sizes have four (4) legs
model AHW-L-2460-SS
except the 60", 72" and 96" long models, which have six (6) legs. Uniform
capacity is 500 pounds each. Welded stainless steel construction.
DECK SIZE SERVICE MODEL WEIGHT MODEL WEIGHT
(W x L) RANGE NUMBER (POUND) NUMBER (POUND)
SERRATED SURFACE ERGONOMIC MATTING SURFACE
19" x 24" 6¾" to 8¾" AHW-L-1924-SS 30 AHT-L-1924-SS 35
24" x 24" 6¾" to 8¾" AHW-L-2424-SS 39 AHT-L-2424-SS 36
model AHW-L-1924-SS 19" x 36" 6¾" to 8¾" AHW-L-1936-SS 45 AHT-L-1936-SS 41
24" x 36" 6¾" to 8¾" AHW-L-2436-SS 50 AHT-L-2436-SS 48
19" x 48" 6¾" to 8¾" AHW-L-1948-SS 53 AHT-L-1948-SS 51
24" x 48" 6¾" to 8¾" AHW-L-2448-SS 59 AHT-L-2448-SS 57
24" x 60" 6¾" to 8¾" AHW-L-2460-SS 65 AHT-L-2460-SS 112
24" x 72" 6¾" to 8¾" AHW-L-2472-SS 115 AHT-L-2472-SS 132
24" x 96" 6¾" to 8¾" AHW-L-2496-SS 124 AHT-L-2496-SS 158
19" x 24" 10½" to 16½" AHW-H-1924-SS 37 AHT-H-1924-SS 37
24" x 24" 10½" to 16½" AHW-H-2424-SS 40 AHT-H-2424-SS 40
19" x 36" 10½" to 16½" AHW-H-1936-SS 47 AHT-H-1936-SS 57
24" x 36" 10½" to 16½" AHW-H-2436-SS 57 AHT-H-2436-SS 63
19" x 48" 10½" to 16½" AHW-H-1948-SS 58 AHT-H-1948-SS 55
24" x 48" 10½" to 16½" AHW-H-2448-SS 65 AHT-H-2448-SS 68
24" x 60" 10½" to 16½" AHW-H-2460-SS 111 AHT-H-2460-SS 130
24" x 72" 10½" to 16½" AHW-H-2472-SS 135 AHT-H-2472-SS 132
24" x 96" 10½" to 16½" AHW-H-2496-SS 136 AHT-H-2496-SS 175
