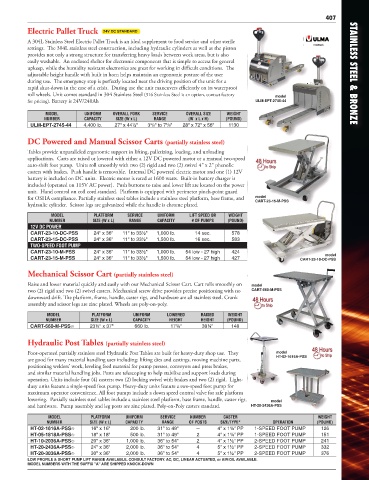

Page 4 - Stainless Steel & Bronze Products
P. 4

407
          Electric Pallet Truck    24V DC STANDARD

          A 304L Stainless Steel Electric Pallet Truck is an ideal supplement to food service and other sterile
          settings.  The 304L stainless steel construction, including hydraulic cylinders as well as the piston,
          provides not only a strong structure for transferring heavy loads between work areas, but is also
          easily washable.  An enclosed shelter for electronic components that is simple to access for general
          upkeep, while the humidity resistant electronics are great for working in difficult conditions.  The
          adjustable height handle with built in horn helps maintain an ergonomic posture of the user              STAINLESS STEEL & BRONZE
          during use.  The emergency stop is perfectly located near the driving position of the unit for a
          rapid shut-down in the case of a crisis.  During use the unit maneuvers efficiently on its waterproof
          roll wheels. Unit comes standard in 304 Stainless Steel (316 Stainless Steel is an option, contact factory   model
          for pricing). Battery is 24V/240Ah                                        ULM-EPT-2745-44

                MODEL        UNIFORM   OVERALL FORK   SERVICE  OVERALL SIZE  WEIGHT
               NUMBER        CAPACITY  SIZE (W x L)  RANGE     (W  x L x H)  (POUND)
           ULM-EPT-2745-44  4,400 lb.  27" x 44½"  3 /8" to 7 /8"  28" x 72" x 56"  1130
                                                  3
                                                       5
          DC Powered and Manual Scissor Carts (partially stainless steel)
          Tables provide unparalleled ergonomic support in lifting, palletizing, loading, and unloading
          applications.  Carts are raised or lowered with either a 12V DC powered motor or a manual two-speed
          auto-shift foot pump.  Units roll smoothly with two (2) rigid and two (2) swivel 4" x 2" phenolic
          casters with brakes.  Push handle is removable.  Internal DC powered electric motor and one (1) 12V
          battery is included on DC units.  Electric motor is rated at 1600 watts.  Built-in battery charger is
          included (operated on 115V AC power).  Push buttons to raise and lower lift are located on the power
          unit.  Hand control on coil cord standard.  Platform is equipped with perimeter pinch-point guard
          for OSHA compliance. Partially stainless steel tables include a stainless steel platform, base frame, and   model
                                                                                    CART-23-15-M-PSS
          hydraulic cylinder.  Scissor legs are galvanized while the handle is chrome plated.
                  MODEL         PLATFORM   SERVICE   UNIFORM   LIFT SPEED OR  WEIGHT
                 NUMBER        SIZE (W x L)  RANGE  CAPACITY    # OF PUMPS  (POUND)
           12V DC POWER
           CART-23-10-DC-PSS    24" x 36"  11" to 33½"  1,000 lb.  14 sec.   578
           CART-23-15-DC-PSS    24" x 36"  11" to 33½"  1,500 lb.  16 sec.   583
           TWO-SPEED FOOT PUMP
           CART-23-10-M-PSS     24" x 36"  11" to 33½"  1,000 lb.  54 low - 27 high  424                   model
           CART-23-15-M-PSS     24" x 36"  11" to 33½"  1,500 lb.  54 low - 27 high  427           CART-23-10-DC-PSS

          Mechanical Scissor Cart (partially stainless steel)
          Raise and lower material quickly and easily with our Mechanical Scissor Cart. Cart rolls smoothly on   model
          two (2) rigid and two (2) swivel casters. Mechanical screw drive provides precise positioning with no   CART-660-M-PSS
          downward drift. The platform, frame, handle, caster rigs, and hardware are all stainless steel. Crank
          assembly and scissor legs are zinc plated. Wheels are poly-on-poly.

                MODEL          PLATFORM      UNIFORM    LOWERED    RAISED   WEIGHT
                NUMBER         SIZE (W x L)  CAPACITY   HEIGHT     HEIGHT  (POUND)
           CART-660-M-PSS    23½" x 37"     660 lb.     17¼"      39¼"      148

          Hydraulic Post Tables (partially stainless steel)
          Foot-operated partially stainless steel Hydraulic Post Tables are built for heavy-duty shop use.  They   model
          are good for many material handling uses including: lifting dies and castings, moving machine parts,   HT-02-1616A-PSS
          positioning welders' work, leveling feed material for pump presses, conveyors and press brakes,
          and similar material handling jobs. Posts are telescoping to help stabilize and support loads during
          operation. Units include four (4) casters; two (2) locking swivel with brakes and two (2) rigid.  Light-
          duty units feature a single-speed foot pump. Heavy-duty units feature a two-speed foot pump for
          maximum operator convenience. All foot pumps include a down speed control valve for safe platform
          lowering.  Partially stainless steel tables include a stainless steel platform, base frame, handle, caster rigs,   model
          and hardware.  Pump assembly and leg posts are zinc plated. Poly-on-Poly casters standard.  HT-20-2436A-PSS
                 MODEL         PLATFORM   UNIFORM    SERVICE   NUMBER     CASTER                         WEIGHT
                NUMBER        SIZE (W x L)  CAPACITY  RANGE    OF POSTS  SIZE/TYPE*       OPERATION      (POUND)
           HT-02-1616A-PSS    16" x 16"    200 lb.  31" to 49"  --     4" x 1¼" PP  1-SPEED FOOT PUMP    126
           HT-05-1818A-PSS    18" x 18"    500 lb.  31" to 49"  2      4" x 1¼" PP  1-SPEED FOOT PUMP    151
           HT-10-2036A-PSS    20" x 36"  1,000 lb.  36" to 54"  2      4" x 1½" PP  2-SPEED FOOT PUMP    241
           HT-20-2436A-PSS    24" x 36"  2,000 lb.  36" to 54"  4      5" x 1½" PP  2-SPEED FOOT PUMP    332
           HT-20-3036A-PSS    30" x 36"  2,000 lb.  36" to 54"  4      5" x 1½" PP  2-SPEED FOOT PUMP    376
          LOW PROFILE & SHORT PUMP LIFT RANGE AVAILABLE. CONSULT FACTORY. AC, DC, LINEAR ACTUATED, or AIR/OIL AVAILABLE.
          MODEL NUMBERS WITH THE SUFFIX "A" ARE SHIPPED KNOCK-DOWN
