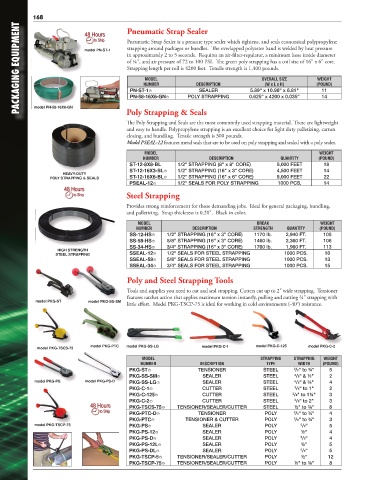

Page 15 - Packaging Equipment
P. 15

168                            Pneumatic Strap Sealer
       PACKAGING EQUIPMENT   model PN-ST-1  strapping around packages or bundles.  The overlapped polyester band is welded by heat pressure


                                           Pneumatic Strap Sealer is a pressure type sealer which tightens, and seals economical polypropylene
                                           in approximately 2 to 5 seconds.  Requires an air-filter-regulator, a minimum hose inside diameter
                                           of ¼", and air pressure of 72 to 100 PSI.  The green poly strapping has a coil size of 16" x 6" core.
                                           Strapping length per roll is 4200 feet.  Tensile strength is 1,400 pounds.

                                                MODEL
                                                                                                         WEIGHT
                                                                                       OVERALL SIZE
                                                                 DESCRIPTION
                                                                                        (W x L x H)
                                                NUMBER
                                                                                                        (POUND)
                                                                  SEALER
                                                                                   5.89" x 10.96" x 6.81"
                                                                                                          11
                                           PN-ST-1�
                                                                                                          14
                                                              POLY STRAPPING
                                                                                  0.625" x 4200 x 0.035"
                                           PN-58-16X6-GN�
            model PN-58-16X6-GN
                                          Poly Strapping & Seals
                                          The Poly Strapping and Seals are the most commonly used strapping material. These are lightweight
                                          and easy to handle. Polypropylene strapping is an excellent choice for light duty palletizing, carton
                                          closing, and bundling.  Tensile strength is 300 pounds.
                                          Model PSEAL-12 features metal seals that are to be used on poly strapping and sealed with a poly sealer.
                                                MODEL                                                    WEIGHT
                                                NUMBER               DESCRIPTION             QUANTITY    (POUND)
                                           ST-12-8X8-BL    1/2" STRAPPING (8" x 8" CORE)   9,000 FEET      18
                                           ST-12-16X3-BL�  1/2" STRAPPING (16" x 3" CORE)  4,500 FEET      14
                      HEAVY-DUTY
                 POLY STRAPPING & SEALS    ST-12-16X6-BL�  1/2" STRAPPING (16" x 6" CORE)  9,000 FEET      22
                                           PSEAL-12�       1/2" SEALS FOR POLY STRAPPING    1000 PCS.      14
                                          Steel Strapping
                                          Provides strong reinforcement for those demanding jobs.  Ideal for general packaging, bundling,
                                          and palletizing.  Strap thickness is 0.20".  Black in color.
                                              MODEL                                  BREAK                WEIGHT
                                              NUMBER            DESCRIPTION         STRENGTH   QUANTITY  (POUND)
                                           SS-12-HS�    1/2" STRAPPING (16" x 3" CORE)  1170 lb.  2,940 FT.  105
                                           SS-58-HS�    5/8" STRAPPING (16" x 3" CORE)  1460 lb.  2,360 FT.  106
                                           SS-34-HS�    3/4" STRAPPING (16" x 3" CORE)  1760 lb.  1,960 FT.  113
                    HIGH STRENGTH
                   STEEL STRAPPING         SSEAL-12�    1/2" SEALS FOR STEEL STRAPPING        1000 PCS.    10
                                           SSEAL-58�    5/8" SEALS FOR STEEL STRAPPING        1000 PCS.    13
                                           SSEAL-34�    3/4" SEALS FOR STEEL STRAPPING        1000 PCS.    15
                                           Poly and Steel Strapping Tools

                                           Tools and supplies you need to cut and seal strapping. Cutters cut up to 2" wide strapping.  Tensioner
                                           features ratchet action that applies maximum tension instantly, pulling and cutting ¾" strapping with
             model PKG-ST     model PKG-SS-SM
                                           little effort.  Model PKG-TSCP-75 is ideal for working in cold environments (-40°) resistance.






             model PKG-TSCS-75  model PKG-PTC  model PKG-SS-LG     model PKG-C-1     model PKG-C-125  model PKG-C-2
                                               MODEL                                  STRAPPING   STRAPPING  WEIGHT
                                               NUMBER             DESCRIPTION           TYPE      WIDTH    (POUND)
                                           PKG-ST�                TENSIONER            STEEL     3 /8" to ¾"  5
                                           PKG-SS-SM�              SEALER              STEEL     3 /8" & ½"  2
            model PKG-PS     model PKG-PS-D  PKG-SS-LG�            SEALER              STEEL     5 /8" & ¾"  4
                                           PKG-C-1�                CUTTER              STEEL     3 /8" to 1"  2
                                           PKG-C-125�              CUTTER              STEEL     3 /8" to 1¼"  3
                                           PKG-C-2�                CUTTER              STEEL     3 /8" to 2"  3
                                           PKG-TSCS-75�    TENSIONER/SEALER/CUTTER     STEEL     ½" to ¾"    8
                                           PKG-PTC-D�             TENSIONER             POLY     3 /8" to ¾"  4
                                           PKG-PTC�           TENSIONER & CUTTER        POLY     3 /8" to ¾"  3
            model PKG-TSCP-75              PKG-PS�                 SEALER               POLY       5 /8"     5
                                           PKG-PS-12�              SEALER               POLY       ½"        4
                                           PKG-PS-D�               SEALER               POLY       5 /8"     4
                                           PKG-PS-12L�             SEALER               POLY       ½"        5
                                           PKG-PS-DL�              SEALER               POLY       5 /8"     5
                                           PKG-TSCP-5�     TENSIONER/SEALER/CUTTER      POLY       ½"       12
                                           PKG-TSCP-75�    TENSIONER/SEALER/CUTTER      POLY     ½" to ¾"    8
   10   11   12   13   14   15   16   17   18   19   20
