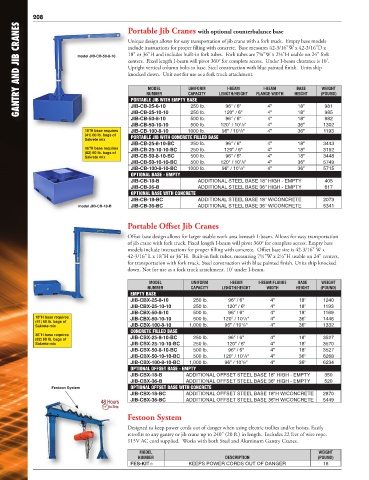

208 Portable Jib Cranes with optional counterbalance base
GANTRY AND JIB CRANES model JIB-CB-50-8-10 include instructions for proper filling with concrete. Base measures 42-3/16"W x 42-3/16"D x

Unique design allows for easy transportation of jib crane with a fork truck. Empty base models
18" or 36"H and includes built-in fork tubes. Fork tubes are 7⅝"W x 2⅝"H usable on 24" fork
centers. Fixed length I-beam will pivot 360° for complete access. Under I-beam clearance is 10'.
Upright vertical column bolts to base. Steel construction with blue painted finish. Units ship
knocked down. Unit not for use as a fork truck attachment.

MODEL
UNIFORM
BASE
WEIGHT
I-BEAM
I-BEAM
NUMBER
FLANGE WIDTH
HEIGHT
(POUND)
CAPACITY
LENGTH/HEIGHT
PORTABLE JIB WITH EMPTY BASE
JIB-CB-25-8-10
96" / 6"
JIB-CB-25-10-10
4"
250 lb.
18"
985
JIB-CB-50-8-10 250 lb. 120" / 6" 4" 18" 981
96" / 6"
18"
500 lb.
4"
982
JIB-CB-50-10-10 500 lb. 120" / 10 /8" 4" 36" 1302
1
18"H base requires JIB-CB-100-8-10 1000 lb. 96" / 10 /8" 4" 36" 1193
1
(41) 60 lb. bags of PORTABLE JIB WITH CONCRETE FILLED BASE
Sakrete mix
JIB-CB-25-8-10-BC 250 lb. 96" / 6" 4" 18" 3443
36"H base requires JIB-CB-25-10-10-BC 250 lb. 120" / 6" 4" 18" 3192
(82) 60 lb. bags of
Sakrete mix JIB-CB-50-8-10-BC 500 lb. 96" / 6" 4" 18" 3448
JIB-CB-50-10-10-BC 500 lb. 120" / 10 /8" 4" 36" 5749
1
JIB-CB-100-8-10-BC 1000 lb. 96" / 10 /8" 4" 36" 5715
1
OPTIONAL BASE - EMPTY
JIB-CB-18-B ADDITIONAL STEEL BASE 18" HIGH - EMPTY 405
JIB-CB-36-B ADDITIONAL STEEL BASE 36" HIGH - EMPTY 617
OPTIONAL BASE WITH CONCRETE
JIB-CB-18-BC ADDITIONAL STEEL BASE 18" W/CONCRETE 2073
model JIB-CB-18-B JIB-CB-36-BC ADDITIONAL STEEL BASE 36" W/CONCRETE 5341
Portable Offset Jib Cranes
Offset base design allows for larger usable work area beneath I-beam. Allows for easy transportation
of jib crane with fork truck. Fixed length I-beam will pivot 360° for complete access. Empty base
models include instructions for proper filling with concrete. Offset base size is 42-3/16" W x
42-3/16" L x 18"H or 36"H. Built-in fork tubes, measuring 7½"W x 2½"H usable on 24" centers,
for transportation with fork truck. Steel construction with blue painted finish. Units ship knocked
down. Not for use as a fork truck attachment. 10' under I-beam.
MODEL UNIFORM I-BEAM I-BEAM FLANGE BASE WEIGHT
NUMBER CAPACITY LENGTH/HEIGHT WIDTH HEIGHT (POUND)
EMPTY BASE
JIB-CBX-25-8-10 250 lb. 96" / 6" 4" 18" 1240
JIB-CBX-25-10-10 250 lb. 120" / 6" 4" 18" 1193
JIB-CBX-50-8-10 500 lb. 96" / 6" 4" 18" 1169
18"H base requires JIB-CBX-50-10-10 500 lb. 120" / 10 /8" 4" 36" 1446
1
(41) 60 lb. bags of
1
Sakrete mix JIB-CBX-100-8-10 1,000 lb. 96" / 10 /8" 4" 36" 1332
CONCRETE FILLED BASE
36"H base requires
(82) 60 lb. bags of JIB-CBX-25-8-10-BC 250 lb. 96" / 6" 4" 18" 3527
Sakrete mix JIB-CBX-25-10-10-BC 250 lb. 120" / 6" 4" 18" 3570
JIB-CBX-50-8-10-BC 500 lb. 96" / 6" 4" 18" 3527
JIB-CBX-50-10-10-BC 500 lb. 120" / 10 /8" 4" 36" 6268
1
JIB-CBX-100-8-10-BC 1,000 lb. 96" / 10 /8" 4" 36" 6234
1
OPTIONAL OFFSET BASE - EMPTY
JIB-CBX-18-B ADDITIONAL OFFSET STEEL BASE 18" HIGH - EMPTY 350
JIB-CBX-36-B ADDITIONAL OFFSET STEEL BASE 36" HIGH - EMPTY 520
Festoon System OPTIONAL OFFSET BASE WITH CONCRETE
JIB-CBX-18-BC ADDITIONAL OFFSET STEEL BASE 18"H W/CONCRETE 2870
JIB-CBX-36-BC ADDITIONAL OFFSET STEEL BASE 36"H W/CONCRETE 5449
Festoon System
Designed to keep power cords out of danger when using electric trollies and/or hoists. Easily
retrofits to any gantry or jib crane up to 240" (20 ft.) in length. Includes 22 feet of wire rope.
115V AC cord supplied. Works with both Steel and Aluminum Gantry Cranes.
MODEL WEIGHT
NUMBER DESCRIPTION (POUND)
FES-KIT� KEEPS POWER CORDS OUT OF DANGER 16
