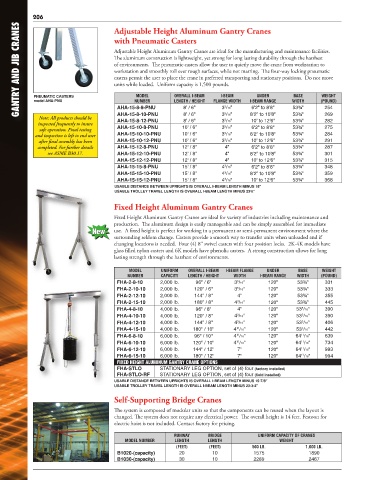

Page 5 - Gantry & Jib Cranes
P. 5

206                       Adjustable Height Aluminum Gantry Cranes
       GANTRY AND JIB CRANES          Adjustable Height Aluminum Gantry Cranes are ideal for the manufacturing and maintenance facilities.

                                      with Pneumatic Casters


                                      The aluminum construction is lightweight, yet strong for long lasting durability through the harshest
                                      of environments.  The pneumatic casters allow the user to quietly move the crane from workstation to
                                      workstation and smoothly roll over rough surfaces, while not marring.  The four-way locking pneumatic
                                      casters permit the user to place the crane in preferred transporting and stationary positions.  Do not move
                                      units while loaded.  Uniform capacity is 1,500 pounds.

                                                                         I-BEAM
                                             MODEL
                                                                                     UNDER
                                                                                                          WEIGHT
                                                                                                 BASE
            PNEUMATIC CASTERS
                                                          LENGTH / HEIGHT
                                             NUMBER
            model AHA-PNU
                                                                          3 /16"
                                                                                                 53¾"
                                                             8' / 6"
                                                                          5
                                                                                   6'2" to 8'8"
                                                                                                           254
                                       AHA-15-8-10-PNU
                                                             8' / 6"
                                                                                   8'2" to 10'8"
                                                                                                           269
                                                                                                 53¾"
                                                                          5
                                                                          3 /16"
              Note: All products should be   AHA-15-8-8-PNU  OVERALL I-BEAM   FLANGE WIDTH  I-BEAM RANGE  WIDTH  (POUND)
                                       AHA-15-8-12-PNU
                                                                                                           282
                                                                          3 /16"
                                                                                                 53¾"
                                                             8' / 6"
                                                                          5
                                                                                   10' to 12'6"
             inspected frequently to insure                               5
              safe operation. Final testing   AHA-15-10-8-PNU  10' / 6"   3 /16"   6'2" to 8'8"  53¾"      275
                                                                          5
             and inspection is left to end user   AHA-15-10-10-PNU  10' / 6"  3 /16"  8'2" to 10'8"  53¾"  284
              after final assembly has been   AHA-15-10-12-PNU  10' / 6"  3 /16"   10' to 12'6"  53¾"      291
                                                                          5
             completed. For further details   AHA-15-12-8-PNU  12' / 8"    4"      6'2" to 8'8"  53¾"      287
                 see ASME B30.17.      AHA-15-12-10-PNU      12' / 8"      4"      8'2" to 10'8"  53¾"     301
                                       AHA-15-12-12-PNU      12' / 8"      4"      10' to 12'6"  53¾"      315
                                       AHA-15-15-8-PNU       15' / 8"     4 /16"   6'2" to 8'8"  53¾"      348
                                                                          3
                                       AHA-15-15-10-PNU      15' / 8"     4 /16"   8'2" to 10'8"  53¾"     359
                                                                          3
                                       AHA-15-15-12-PNU      15' / 8"     4 /16"   10' to 12'6"  53¾"      368
                                                                          3
                                      USABLE DISTANCE BETWEEN UPRIGHTS IS OVERALL I-BEAM LENGTH MINUS 18"
                                      USABLE TROLLEY TRAVEL LENGTH IS OVERALL I-BEAM LENGTH MINUS 23¾"
                                      Fixed Height Aluminum Gantry Cranes
                                      Fixed Height Aluminum Gantry Cranes are ideal for variety of industries including maintenance and
                                      production.  The aluminum design is easily manageable and can be simply assembled for immediate
                               New    use.  A fixed height is perfect for working in a permanent or semi-permanent environment where the
                                      surrounding seldom change. Casters provide a smooth way to transfer units when unloaded and if
                                      changing locations is needed.  Four (4) 8" swivel casters with four position locks.  2K-4K models have
                                      glass filled nylon casters and 6K models have phenolic casters.  A strong construction allows for long
                                      lasting strength through the harshest of environments.
                                           MODEL      UNIFORM  OVERALL I-BEAM   I-BEAM FLANGE  UNDER  BASE  WEIGHT
                                           NUMBER     CAPACITY  LENGTH / HEIGHT  WIDTH  I-BEAM RANGE  WIDTH  (POUND)
                                       FHA-2-8-10    2,000 lb.   96" / 6"     3 /16"     120"     53¾"     331
                                                                               5
                                       FHA-2-10-10   2,000 lb.   120" / 6"    3 /16"     120"     53¾"     333
                                                                               5
                                       FHA-2-12-10   2,000 lb.   144" / 8"     4"        120"     53¾"     355
                                       FHA-2-15-10   2,000 lb.   180" / 8"    4 /16"     120"     53¾"     445
                                                                               3
                                       FHA-4-8-10    4,000 lb.   96" / 8"      4"        120"     53 /16"  390
                                                                                                    5
                                       FHA-4-10-10   4,000 lb.   120" / 8"    4 /16"     120"     53 /16"  390
                                                                                                    5
                                                                               3
                                       FHA-4-12-10   4,000 lb.   144" / 8"    4 /16"     120"     53 /16"  406
                                                                                                    5
                                                                               3
                                       FHA-4-15-10   4,000 lb.  180" / 10"   4 /16"      120"     53 /16"  442
                                                                                                    5
                                                                              11
                                       FHA-6-8-10    6,000 lb.   96" / 10"   4 /16"      120"     64 /16"  639
                                                                                                   11
                                                                              11
                                       FHA-6-10-10   6,000 lb.  120" / 10"   4 /16"      120"     64 /16"  734
                                                                              11
                                                                                                   11
                                       FHA-6-12-10   6,000 lb.  144" / 12"     7"        120"     64 /16"  993
                                                                                                   11
                                       FHA-6-15-10   6,000 lb.  180" / 12"     7"        120"     64 /16"  994
                                                                                                   11
                                       FIXED HEIGHT ALUMINUM GANTRY CRANE OPTIONS
                                       FHA-STLO      STATIONARY LEG OPTION, set of (4) four (factory installed)
                                       FHA-STLO-RF   STATIONARY LEG OPTION, set of (4) four (field installed)
                                      USABLE DISTANCE BETWEEN UPRIGHTS IS OVERALL I-BEAM LENGTH MINUS 15-7/8"
                                      USABLE TROLLEY TRAVEL LENGTH IS OVERALL I-BEAM LENGTH MINUS 23-3/4"
                                      Self-Supporting Bridge Cranes
                                      The system is composed of modular units so that the components can be reused when the layout is
                                      changed. The system does not require any electrical power.  The overall height is 14 feet. Festoon for
                                      electric hoist is not included. Contact factory for pricing.
                                                          RUNWAY     BRIDGE          UNIFORM CAPACITY OF CRANES
                                          MODEL NUMBER    LENGTH     LENGTH                 WEIGHT
                                                           (FEET)    (FEET)        500 LB.           1,000 LB.
                                       B1020-(capacity)     20        10            1575              1890
                                       B1030-(capacity)     30        10            2289              2467
