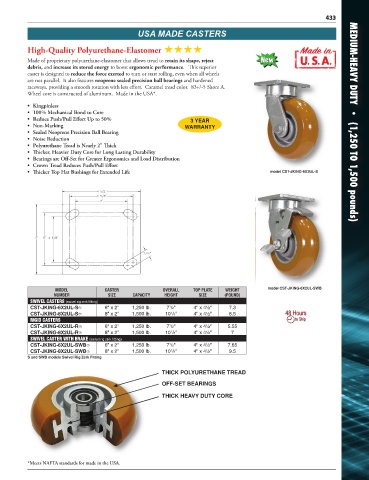

Page 10 - Casters & Wheels
P. 10

433

                                              USA MADE CASTERS

          High-Quality Polyurethane-Elastomer 

          Made of proprietary polyurethane-elastomer that allows tread to retain its shape, reject   New
          debris, and increase its stored energy to boost ergonomic performance.   This superior
          caster is designed to reduce the force exerted to turn or start rolling, even when all wheels
          are not parallel.  It also features neoprene sealed precision ball bearings and hardened
          raceways, providing a smooth rotation with less effort.  Caramel tread color.  83+/-5 Shore A.
          Wheel core is constructed of aluminum.  Made in the USA*.

          •  Kingpinless
          •  100% Mechanical Bond to Core
          •  Reduce Push/Pull Effort Up to 50%                 3 YEAR
          •  Non-Marking                                     WARRANTY                                              MEDIUM-HEAVY DUTY  •  (1,250 TO 1,500 pounds)
          •  Sealed Neoprene Precision Ball Bearing
          •  Noise Reduction
          •  Polyurethane Tread is Nearly 2" Thick
          •  Thicker, Heavier Duty Core for Long Lasting Durability
          •  Bearings are Off-Set for Greater Ergonomics and Load Distribution
          •  Crown Tread Reduces Push/Pull Effort
          •  Thicker Top Hat Bushings for Extended Life                                  model CST-JKING-6X2UL-S






















                   MODEL           CASTER             OVERALL   TOP PLATE  WEIGHT        model CST-JKING-6X2UL-SWB
                   NUMBER           SIZE    CAPACITY   HEIGHT     SIZE    (POUND)
           SWIVEL CASTERS (swivel rig zerk fitting)
                                                        1
           CST-JKING-6X2UL-S      6" x 2"  1,250 lb.  7 /2"    4" x 4½"    7.3
                                                         1
           CST-JKING-8X2UL-S      8" x 2"  1,500 lb.  10 /8"   4" x 4½"    8.5
           RIGID CASTERS
           CST-JKING-6X2UL-R      6" x 2"  1,250 lb.  7 /2"    4" x 4½"   5.55
                                                        1
                                                         1
           CST-JKING-8X2UL-R      8" x 2"  1,500 lb.  10 /8"   4" x 4½"     7
           SWIVEL CASTER WITH BRAKE (swivel rig zerk fitting)
                                                        1
           CST-JKING-6X2UL-SWB    6" x 2"  1,250 lb.  7 /2"    4" x 4½"   7.65
           CST-JKING-8X2UL-SWB    8" x 2"  1,500 lb.  10 /8"   4" x 4½"    9.5
                                                         1
          S and SWB models Swivel Rig Zerk Fitting
                                                      THICK POLYURETHANE TREAD
                                                      OFF-SET BEARINGS
                                                      THICK HEAVY DUTY CORE












          *Meets NAFTA standards for made in the USA.
