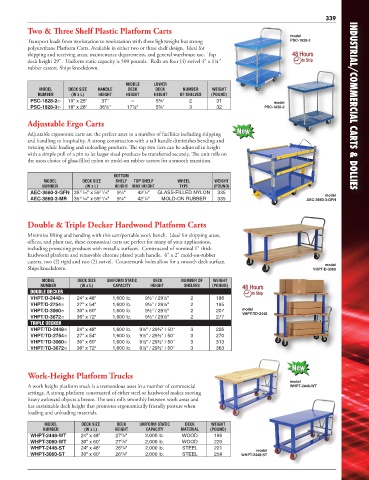

Page 4 - Industrial Carts & Dollies

339
Two & Three Shelf Plastic Platform Carts
model
Transport loads from workstation to workstation with these lightweight but strong PSC-1828-3
polyurethane Platform Carts. Available in either two or three shelf design. Ideal for
shipping and receiving areas, maintenance departments, and general warehouse use. Top
deck height 29". Uniform static capacity is 500 pounds. Rolls on four (4) swivel 4" x 1¼"
rubber casters. Ships knockdown.

MIDDLE LOWER
MODEL DECK SIZE HANDLE DECK DECK NUMBER WEIGHT
NUMBER (W x L) HEIGHT HEIGHT HEIGHT OF SHELVES (POUND)
PSC-1828-2 19" x 25" 37" -- 5¾" 2 31 model
PSC-1828-3 18" x 28" 36¼" 17½" 5¾" 3 32 PSC-1828-2 INDUSTRIAL/COMMERCIAL CARTS & DOLLIES
Adjustable Ergo Carts

Adjustable ergonomic carts are the perfect asset to a number of facilities including shipping New
and handling to hospitality. A strong construction with a tall handle diminishes bending and
twisting while loading and unloading products. The top two tiers can be adjusted in height
with a simple pull of a pin to let larger sized products be transferred securely. The unit rolls on
the users choice of glass-filled nylon or mold-on rubber casters for a smooth transition.

BOTTOM
MODEL DECK SIZE SHELF TOP SHELF WHEEL WEIGHT
NUMBER (W x L) HEIGHT MAX HEIGHT TYPE (POUND)
11
AEC-3660-3-GFN 35 /16" x 59 /16" 9¼" 42 /8" GLASS-FILLED NYLON 335 model
7
11
AEC-3660-3-MR 35 /16" x 59 /16" 9¼" 42 /8" MOLD-ON RUBBER 335 AEC-3660-3-GFN
11
11
7
Double & Triple Decker Hardwood Platform Carts
Minimize lifting and bending with this cart/portable work bench. Ideal for shipping areas,
offices, and plant use, these economical carts are perfect for many of your applications,
including protecting products with metallic surfaces. Constructed of nominal 1" thick
hardwood platform and removable chrome plated push handle. 6" x 2" mold-on-rubber
casters, two (2) rigid and two (2) swivel. Countersunk holes allow for a smooth deck surface.
model
Ships knockdown. VHPT/D-3060
MODEL DECK SIZE UNIFORM STATIC DECK NUMBER OF WEIGHT
NUMBER (W x L) CAPACITY HEIGHT SHELVES (POUND)
DOUBLE DECKER
VHPT/D-2448 24" x 48" 1,600 lb. 9½" / 29½" 2 186
VHPT/D-2754 27" x 54" 1,600 lb. 9½" / 29½" 2 195
model
VHPT/D-3060 30" x 60" 1,600 lb. 9½" / 29½" 2 207
VHPT/TD-2448
VHPT/D-3672 36" x 72" 1,600 lb. 9½" / 29½" 2 277
TRIPLE DECKER
VHPT/TD-2448 24" x 48" 1,600 lb. 9½" / 29½" / 50" 3 226
VHPT/TD-2754 27" x 54" 1,600 lb. 9½" / 29½" / 50" 3 270
VHPT/TD-3060 30" x 60" 1,600 lb. 9½" / 29½" / 50" 3 313
VHPT/TD-3672 36" x 72" 1,600 lb. 9½" / 29½" / 50" 3 363

New
Work-Height Platform Trucks
model
A work height platform truck is a tremendous asset in a number of commercial WHPT-2448-WT
settings. A strong platform constructed of either steel or hardwood makes moving
heavy awkward objects a breeze. The unit rolls smoothly between work areas and
has sustainable deck height that promotes ergonomically friendly posture when
loading and unloading materials.

MODEL DECK SIZE DECK UNIFORM STATIC DECK WEIGHT
NUMBER (W x L) HEIGHT CAPACITY MATERIAL (POUND)
WHPT-2448-WT 24" x 48" 27 /8" 2,000 lb. WOOD 195
3
WHPT-3060-WT 30" x 60" 27 /8" 2,000 lb. WOOD 220
3
WHPT-2448-ST 24" x 48" 26 /8" 2,000 lb. STEEL 221 model
5
WHPT-3060-ST 30" x 60" 26 /8" 2,000 lb. STEEL 258 WHPT-2448-ST
5
