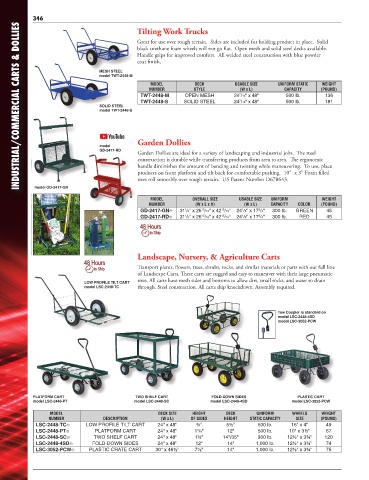

Page 11 - Industrial Carts & Dollies
P. 11
346
INDUSTRIAL/COMMERCIAL CARTS & DOLLIES
Tilting Work Trucks
Great for use over rough terrain. Sides are included for holding product in place. Solid
black urethane foam wheels will not go flat. Open mesh and solid steel decks available.
Handle grips for improved comfort. All welded steel construction with blue powder
coat finish.
MESH STEEL
model TWT-2448-M
MODEL DECK USABLE SIZE UNIFORM STATIC WEIGHT
NUMBER STYLE (W x L) CAPACITY (POUND)
TWT-2448-M OPEN MESH 24 /16" x 48" 500 lb. 136
7
TWT-2448-S SOLID STEEL 24 /16" x 48" 500 lb. 181
7
SOLID STEEL
model TWT-2448-S
Garden Dollies
model
GD-2417-RD
Garden Dollies are ideal for a variety of landscaping and industrial jobs. The steel
construction is durable while transferring products from area to area. The ergonomic
handle diminishes the amount of bending and twisting while maneuvering. To use, place
products on front platform and tilt back for comfortable pushing. 10" x 3" Foam filled
tires roll smoothly over rough terrain. US Patent Number D678643.
model GD-2417-GN
MODEL OVERALL SIZE USABLE SIZE UNIFORM WEIGHT
NUMBER (W x L x H) (W x L) CAPACITY COLOR (POUND)
1
1
3
15
15
GD-2417-GN 31 /8" x 26 /16" x 42 /16" 24 /8" x 17 /4" 300 lb. GREEN 45
15
1
15
1
3
GD-2417-RD 31 /8" x 26 /16" x 42 /16" 24 /8" x 17 /4" 300 lb. RED 45
Landscape, Nursery, & Agriculture Carts
Transport plants, flowers, trees, shrubs, rocks, and similar materials or parts with our full line
of Landscape Carts. These carts are rugged and easy to maneuver with their large pneumatic
tires. All carts have mesh sides and bottoms to allow dirt, small rocks, and water to drain
LOW PROFILE TILT CART
model LSC-2448-TC through. Steel construction. All carts ship knockdown. Assembly required.
Tow Coupler is standard on
model LSC-2448-4SD
model LSC-3052-PCW
PLATFORM CART TWO SHELF CART FOLD-DOWN SIDES PLASTIC CART
model LSC-2448-PT model LSC-2448-SC model LSC-2448-4SD model LSC-3052-PCW
MODEL DECK SIZE HEIGHT DECK UNIFORM WHEELS WEIGHT
NUMBER DESCRIPTION (W x L) OF SIDES HEIGHT STATIC CAPACITY SIZE (POUND)
LSC-2448-TC LOW PROFILE TILT CART 24" x 48" ¾" 5½" 500 lb. 16" x 4" 49
LSC-2448-PT PLATFORM CART 24" x 48" 1 /8" 12" 500 lb. 10" x 3½" 67
5
LSC-2448-SC TWO SHELF CART 24" x 48" 1¾" 14"/35" 300 lb. 12½" x 3¾" 120
LSC-2448-4SD FOLD-DOWN SIDES 24" x 48" 12" 14" 1,000 lb. 12½" x 3¾" 74
LSC-3052-PCW PLASTIC CRATE CART 30" x 46½" 7½" 14" 1,000 lb. 12½" x 3¾" 75
